German GIRA-KNX & HomeKit Luxury Villa Smart Home Case Study

In the construction of luxury townhouse residences and high-end villas, balancing rock-solid bus reliability, clean architectural wall aesthetics, and intuitive mobile app control has always been the primary focus for discerning homeowners and interior designers.

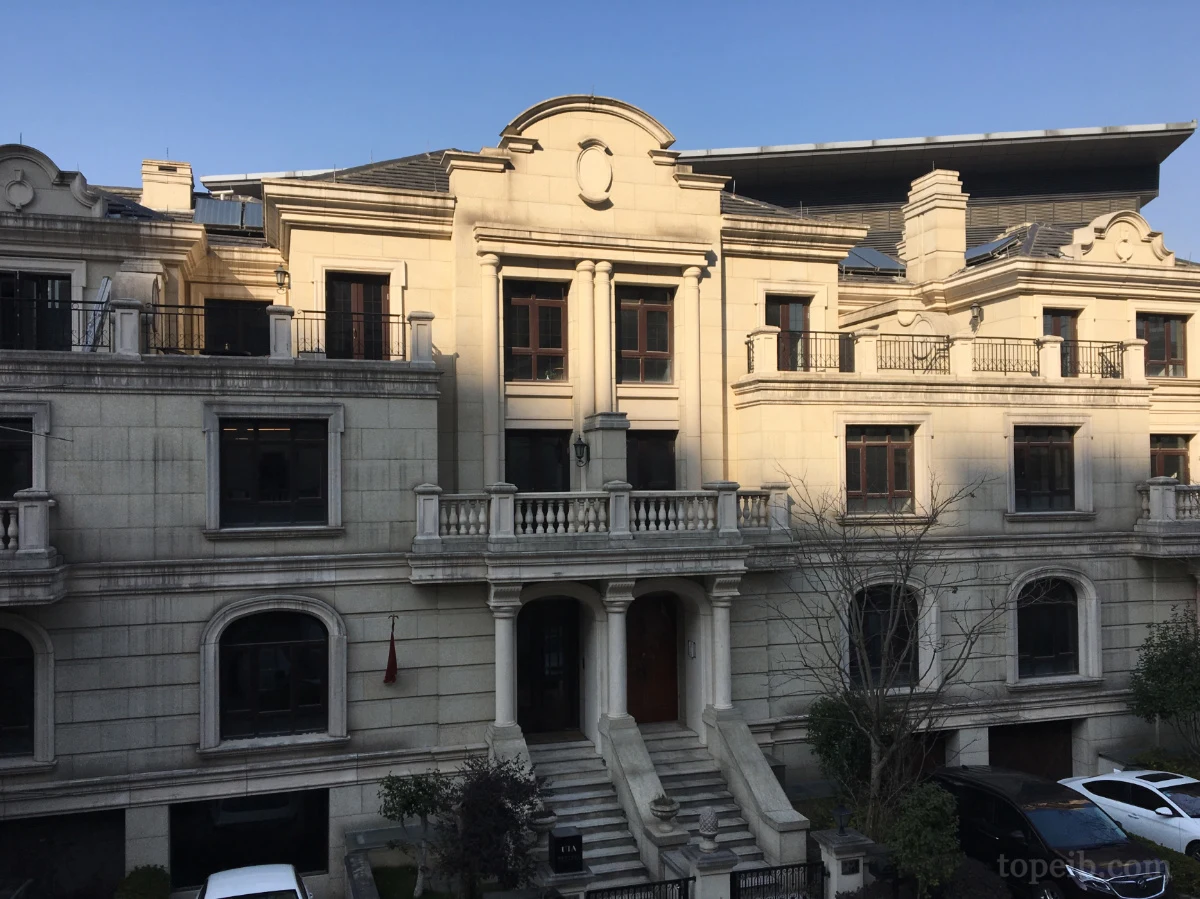

This featured project is situated in Ningbo, Zhejiang Province—a multi-story luxury townhouse villa. As a certified smart low-voltage system integrator with 14 years of industry leadership, TOP Smart spearheaded the entire engineering lifecycle: from initial schematic planning, detailed CAD shop drawing design, onsite electrical briefing, to German-imported KNX hardware installation, ETS logic programming, and dual-ecosystem integration.

---

1. Project Overview

1.1 Project Introduction

This luxury smart villa project is located in Ningbo. Through in-depth early discovery sessions, the client's requirements were clearly defined:

• Smart Home System: Using German-imported GIRA KNX smart home system integrated with the Apple HomeKit smart platform, controlling whole-house lighting, motorized shading, HVAC climate, and access control;
• Intercom & Central Touchscreen: Using GIRA's video intercom system alongside the GIRA G1 smart touch panel for centralized home control and intercom communication;
• Surveillance System: Implementing Hikvision HD IP video surveillance;
• Network Infrastructure: Whole-house Wi-Fi coverage powered by Ubiquiti UniFi, with enterprise wired switching by H3C, offering great flexibility for future software router additions.

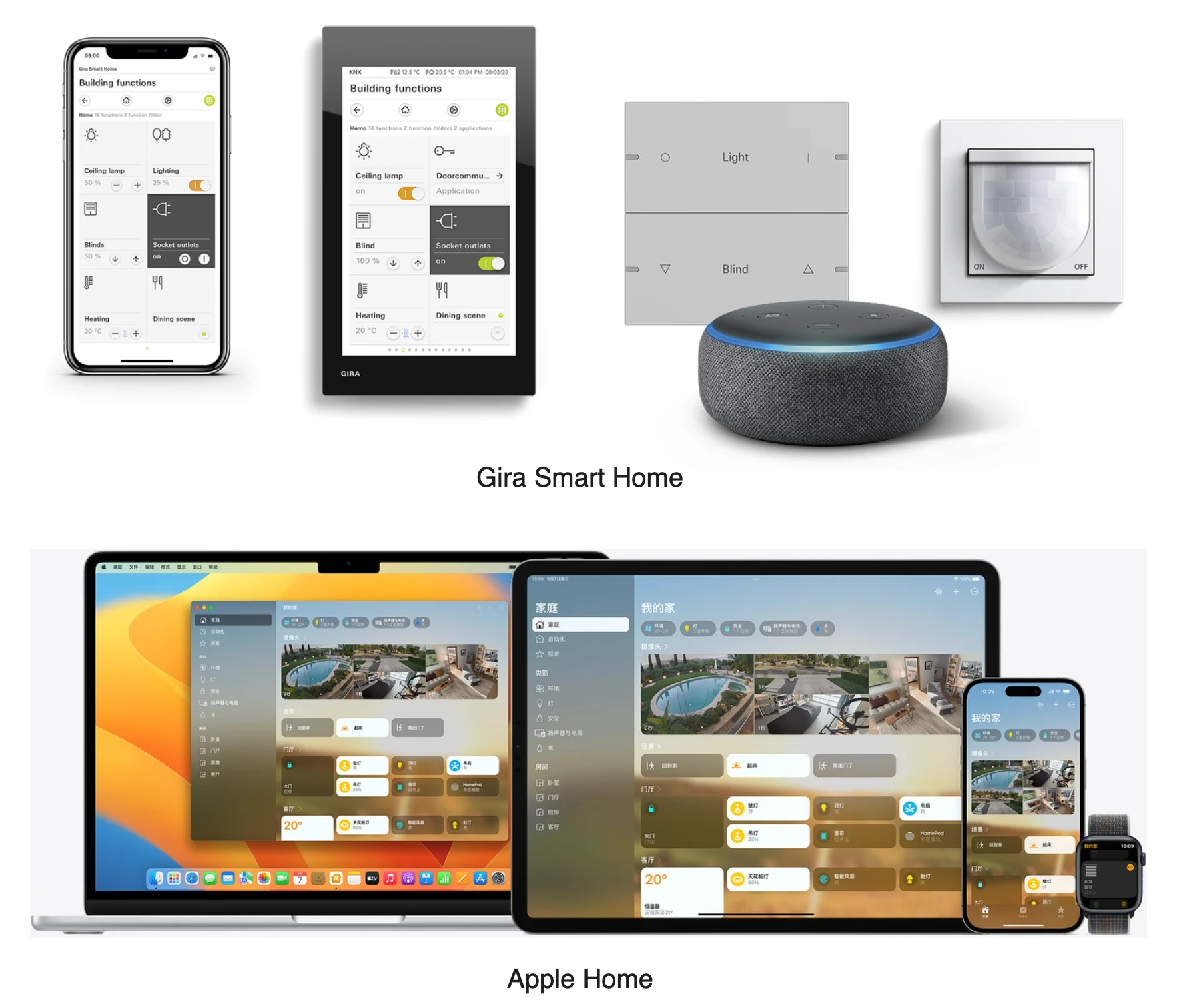

The entire smart system can be managed via the native Gira Smart Home App as well as the Apple Home App (HomeKit). Local wall controls feature German GIRA KNX smart thermostat keypads—a single keypad consolidates lighting, shading, air conditioning, floor heating, and multi-scene presets, leaving interior walls remarkably clean and minimalist.

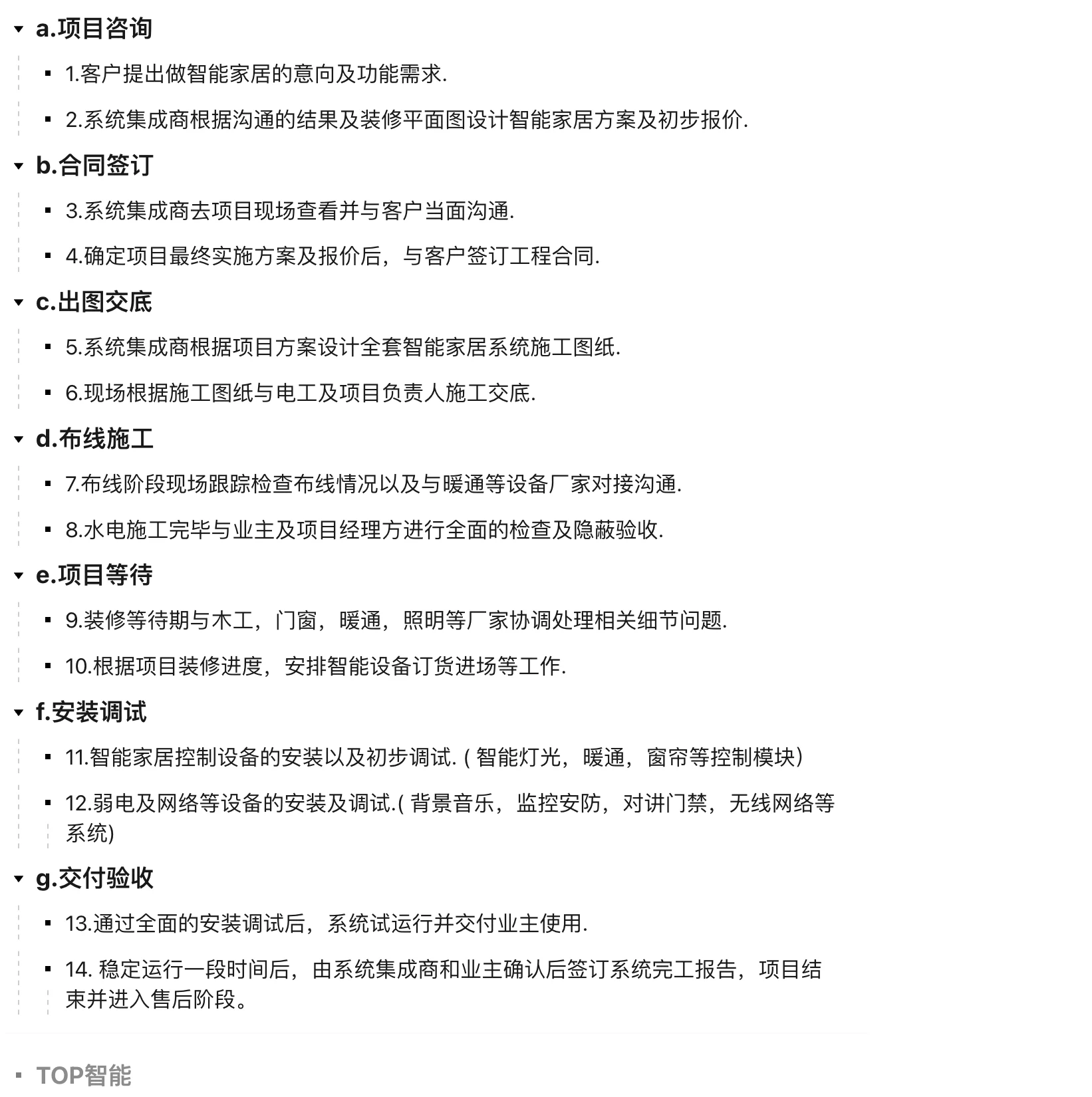

1.2 Project Engineering Workflow (SOP)

Many clients inquiring about smart homes are unfamiliar with project milestones. Drawing on over a decade of hands-on villa delivery, we summarized the standard engineering workflow to help homeowners understand construction stages and project scheduling:

---

2. System Overview

Our design for this smart villa incorporates the following systems:

2.1 Smart Systems Introduction

• a. Smart Lighting System: Including lighting scenes, dimming control, and smart socket management (German GIRA KNX);
• b. Motorized Shading System: Including motorized drapery and roller blind control (German GIRA KNX);
• c. Smart Climate System: Including hydronic central air conditioning and radiant floor heating (German GIRA KNX);
• d. Video Intercom & Access: Including modular outdoor calling and garage door control (German GIRA DCS Intercom);
• e. Security Surveillance: Including HD IP security cameras (Hikvision);
• f. Wireless Network System: Including seamless Wi-Fi coverage and core switching (Ubiquiti UniFi & H3C).

KNX Smart System

• KNX is a standardized, intelligent solution engineered for modern building control;
• KNX is the world's only open international standard for home and commercial building automation (ISO/IEC 14543);
• The KNX Association boasts over 500 global manufacturer members, accounting for more than 80% of European home automation hardware;
• Global giants including Schneider, Bosch, Siemens, and GIRA develop certified solutions based on this standard.

Via KNX, lighting, blinds, HVAC, and audio systems are automated with ease. Smart automation significantly boosts residential comfort, enhances physical security, and lowers ongoing energy costs for both private residences and commercial buildings.

GIRA's manufacturing heritage dates back to 1905 in Radevormwald, Germany. With over a century of precision engineering, GIRA is globally celebrated as a premier manufacturer of architectural switches and KNX smart systems.

a. Smart Lighting System

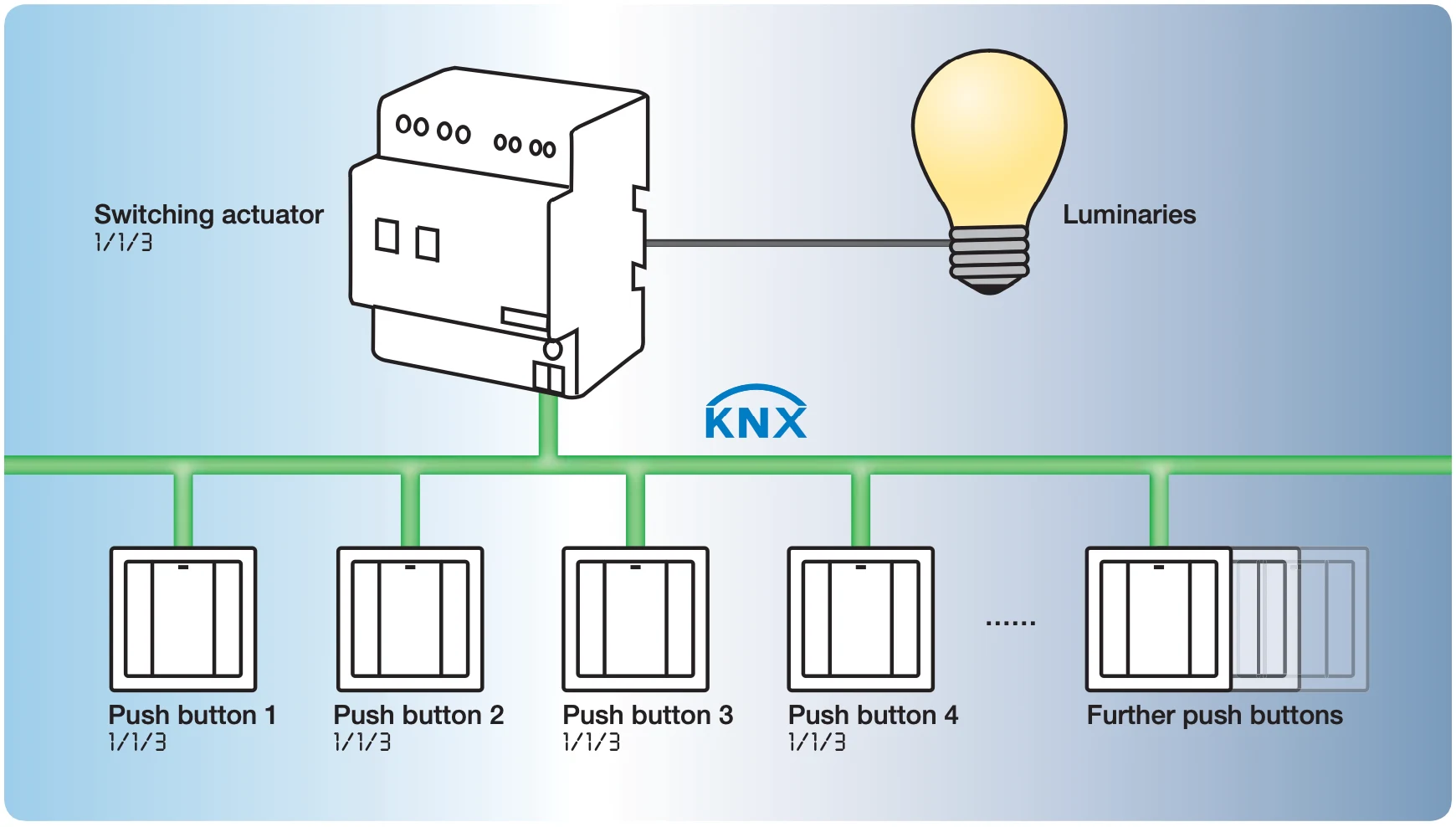

The KNX system controls whole-house lighting, air conditioning, floor heating, curtains, and garage doors. Each floor houses an embedded smart sub-distribution panel where all switched and dimmed lighting cables terminate onto KNX modules. Wall smart keypads and motion sensors connect via the green 4-core shielded KNX bus cable to the panel. All floor panels are interconnected via the bus backbone.

Smart lighting fixtures support both ON/OFF switching and 0–100% dimming, as well as tunable white color temperature control. Incorporating dimmable circuits in primary living spaces (living room, master bedroom) greatly enhances comfort.

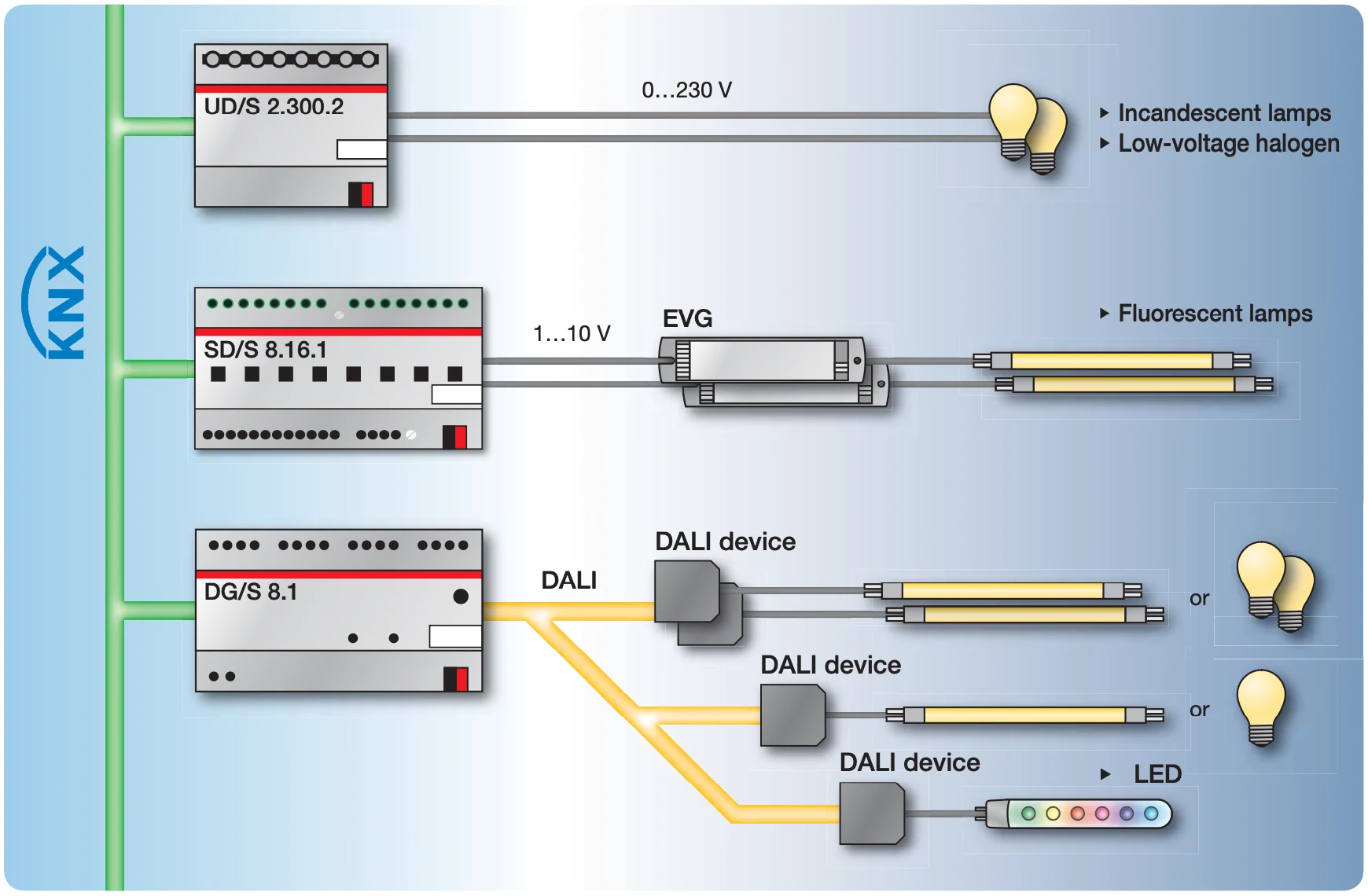

Three primary dimming protocols are commonly used:

1. Phase-Cut (Leading/Trailing Edge) Dimming
2. 1-10V Analog Dimming
3. DALI Digital Dimming

Each dimming method requires matching LED drivers and distinct cabling. This project utilizes phase-cut dimming for its cabling simplicity and reliable performance.

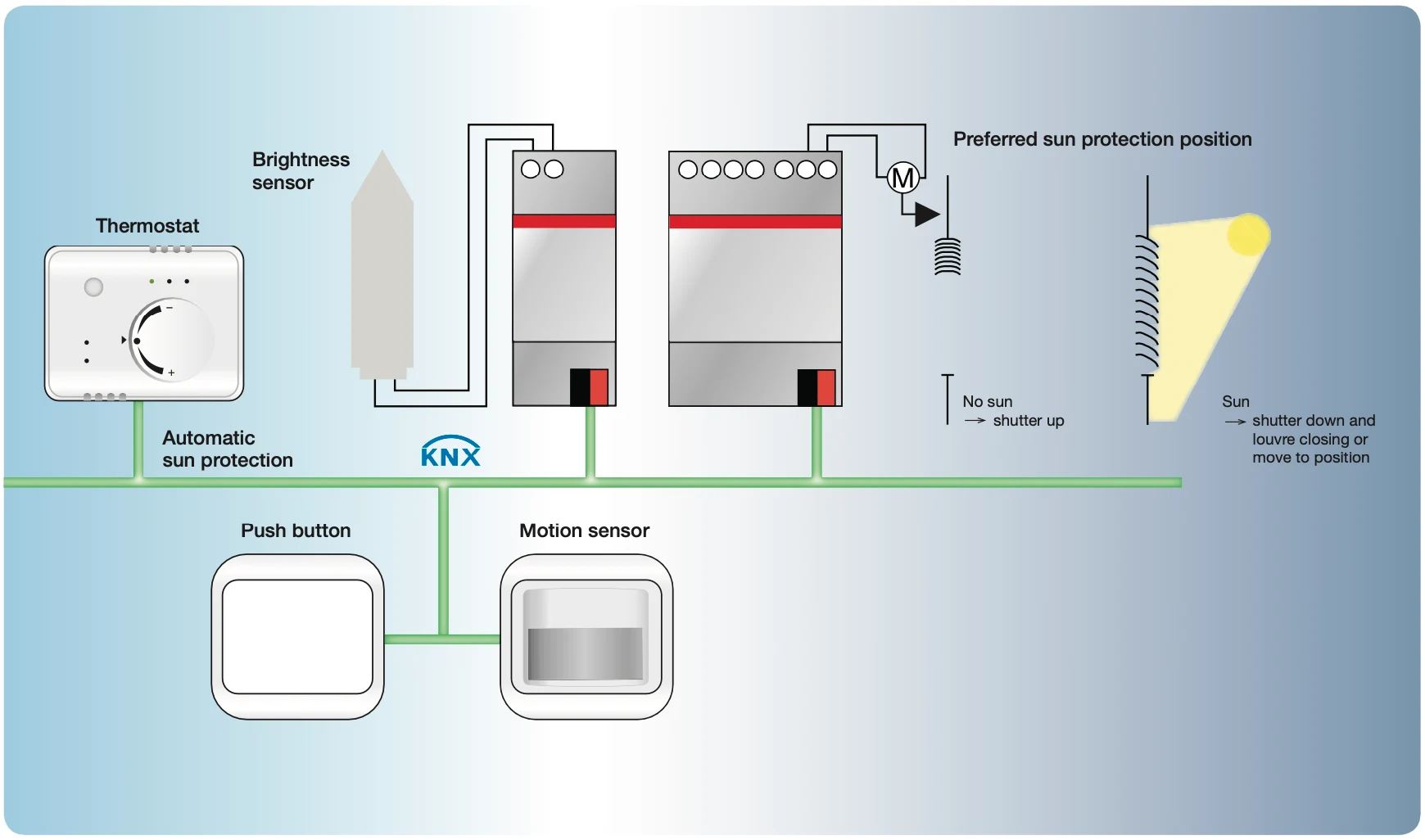

b. Motorized Shading System

The motorized shading system manages curtains, motorized venetian blinds, and roller shades, with support for automated doors and windows. For DC24V blind motors, dedicated DC shutter actuators are paired for precise slat angle tilting.

Common curtain motor control methods include:

1. Direct AC (or DC) Power Phase Switching
2. Internal Dry Contact Triggering
3. RS485 Serial Protocol Control

This project employs direct AC power control actuators for reliable motorized track operation.

c. Smart Climate Control (HVAC & Floor Heating)

The climate control system delivers automated year-round comfort:

• Summer: Activates central cooling to maintain a comfortable 21°C;
• Winter: Activates radiant floor heating to maintain 23°C;
• Anti-Freeze Mode: When homeowners leave in winter, the system maintains minimum 7°C water circulation, preventing frozen or burst pipes.

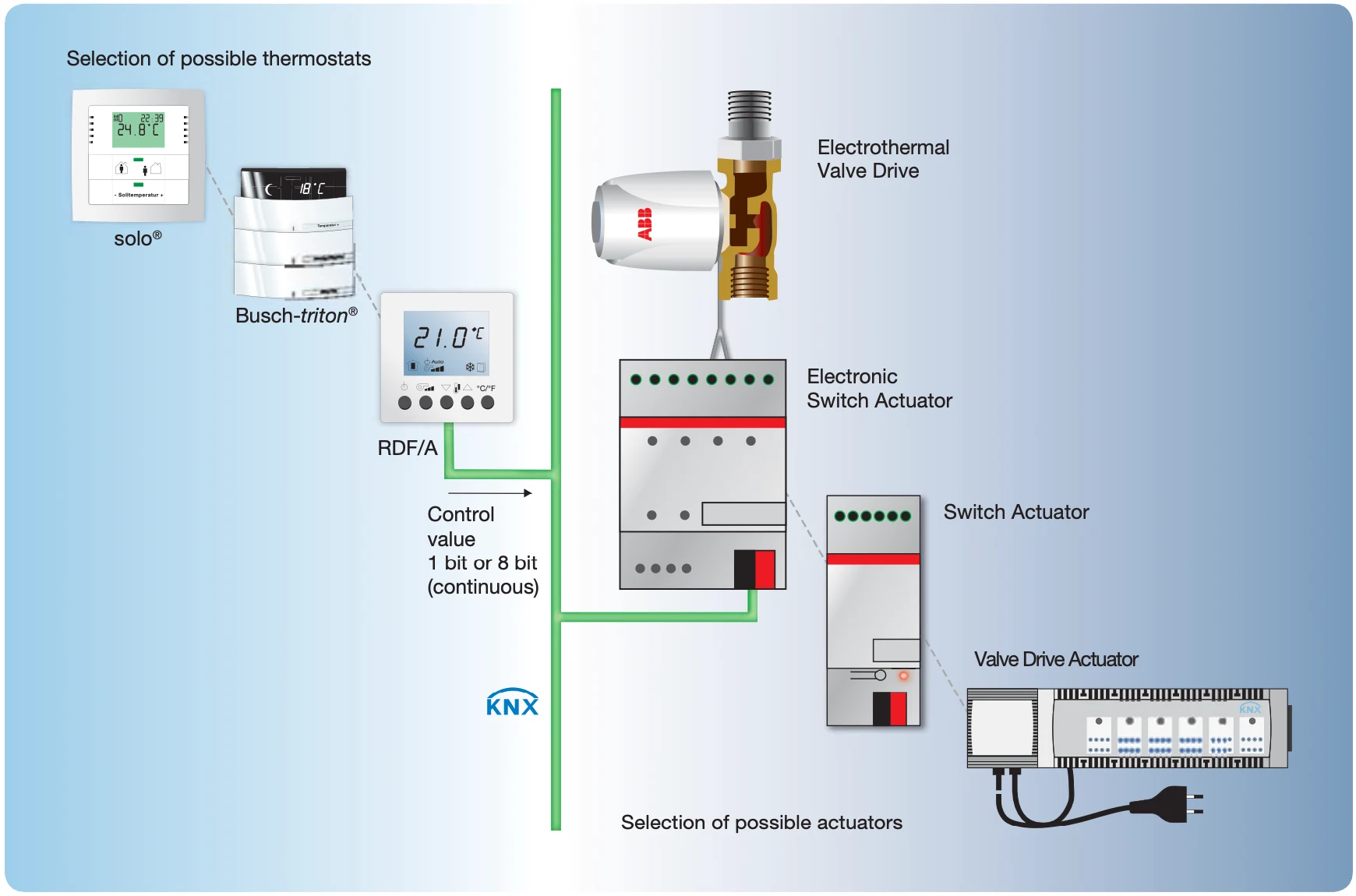

Thermostatic keypads continuously measure ambient temperature, opening or closing manifold thermoelectric valves automatically to sustain constant warmth.

Air conditioning integration depends on equipment architecture:

1. VRV/VRF Direct Refrigerant Systems (e.g., Daikin);
2. Hydronic Water-Chiller Fan Coil Systems (e.g., York, Trane).

This residence employs a hydronic chiller system; KNX fan coil actuators govern 2-pipe water valves and 3-speed AC fan motors.

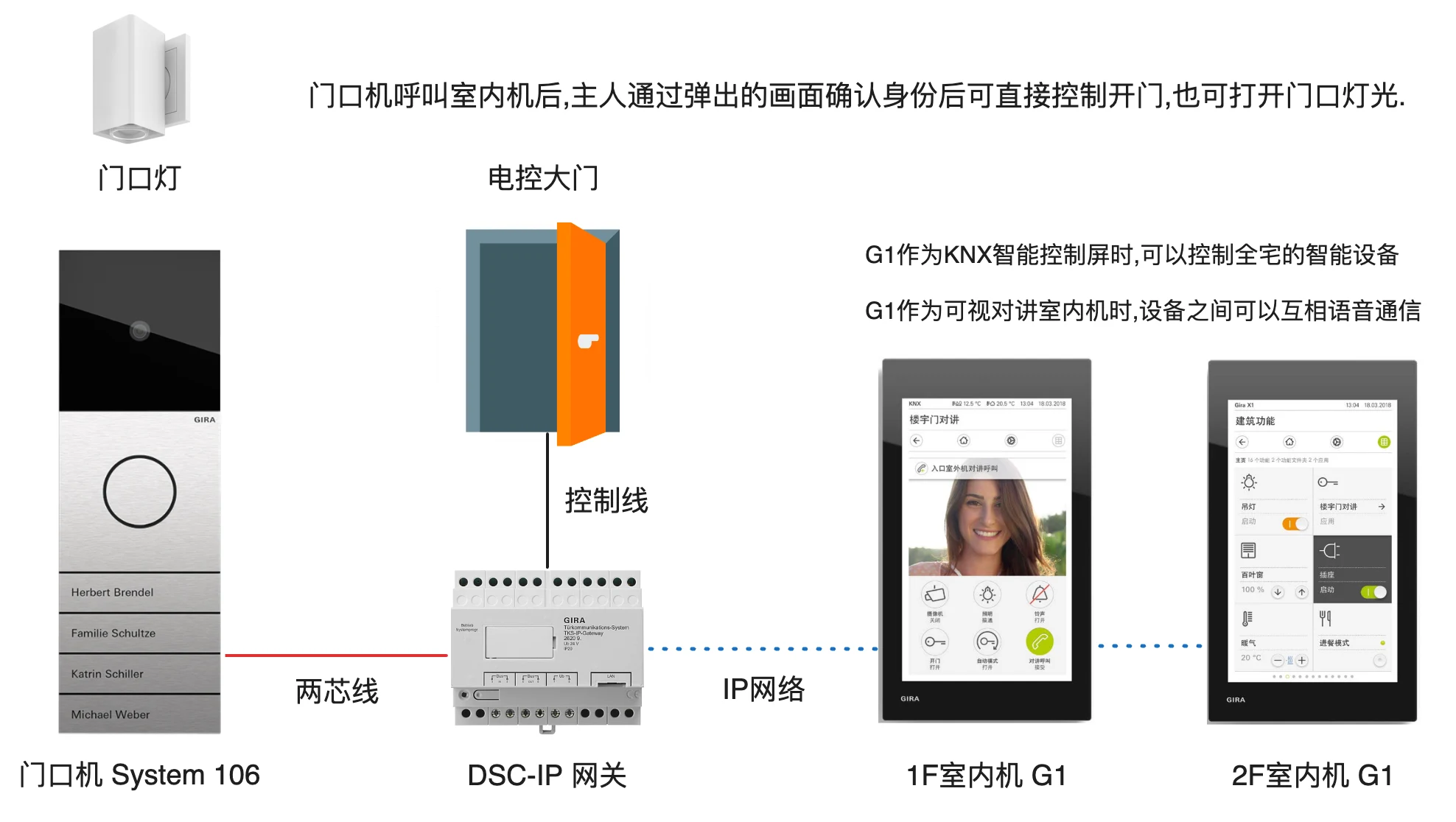

d. Video Intercom & Access Control

The intercom system pairs the GIRA G1 multi-touch display with the GIRA DCS-IP Gateway and GIRA System 106 outdoor station with color camera. Doorbell presses instantly stream video to the G1 display. A tap initiates two-way audio, releases door locks, or turns on entry lighting. Multiple G1 indoor units support internal room-to-room voice calls.

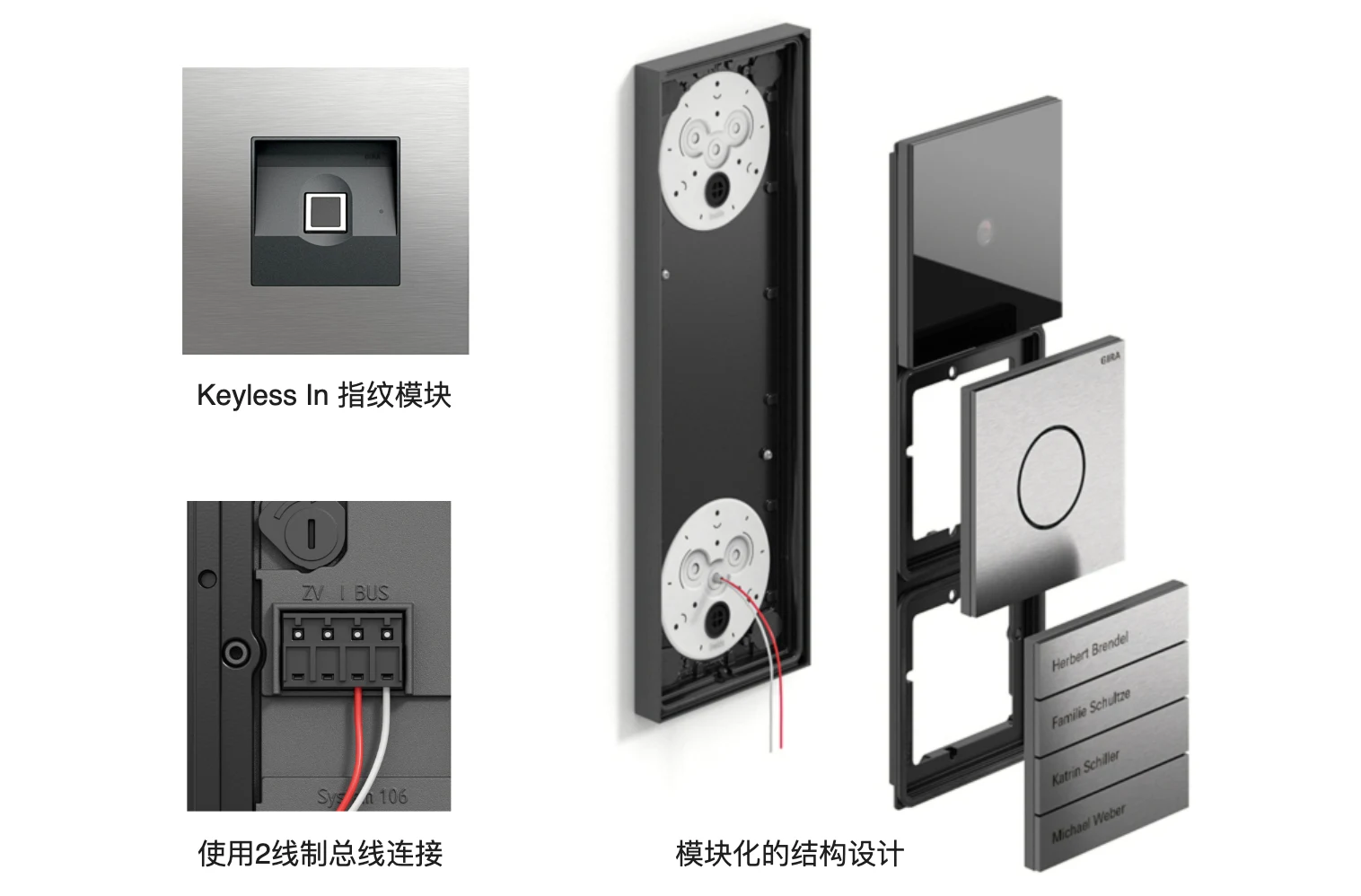

The modular GIRA System 106 adapts to specific requirements—incorporating doorbells, wide-angle cameras, nameplates, and house numbers. Premium biometric fingerprint modules can be integrated for secure, keyless entry.

e. Security Surveillance System

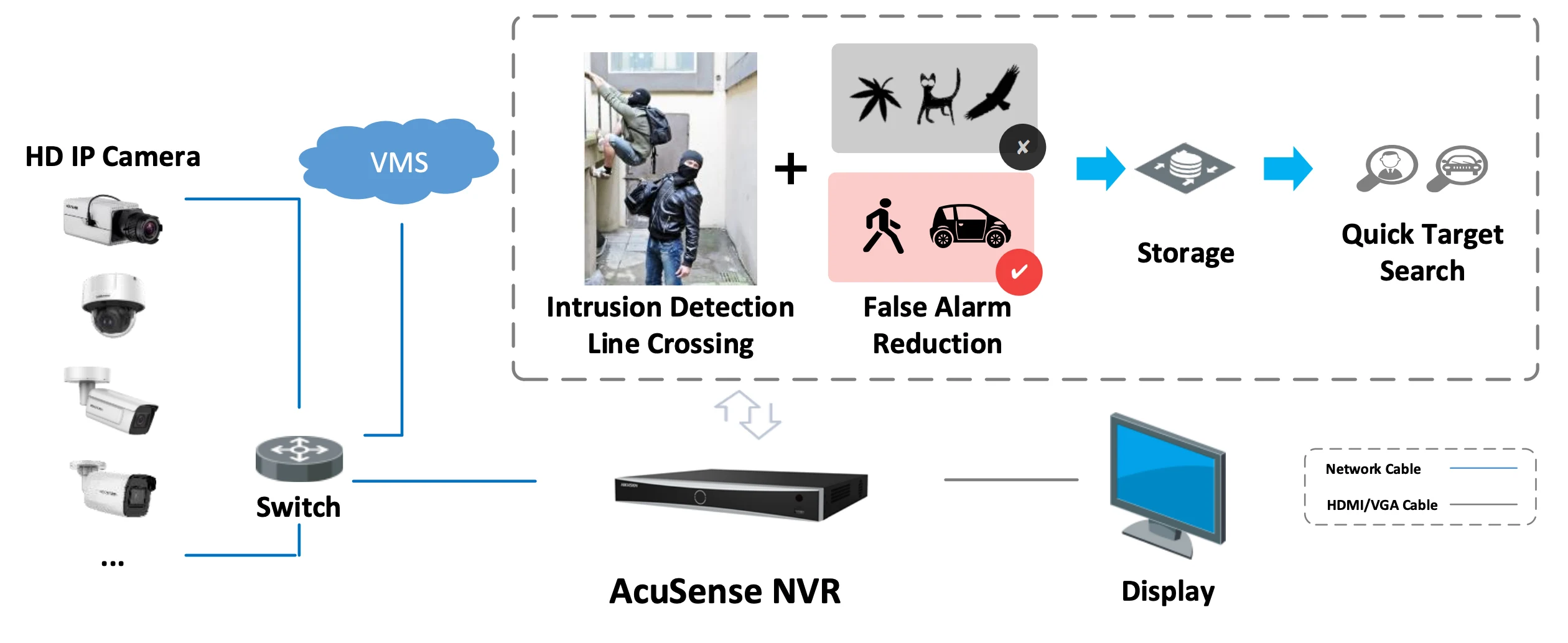

HD PoE security cameras cover key perimeter and vehicular access points. NVR smart motion analytics send real-time push alerts to mobile devices. Feeds can be viewed on rack monitors or smartphones at any time.

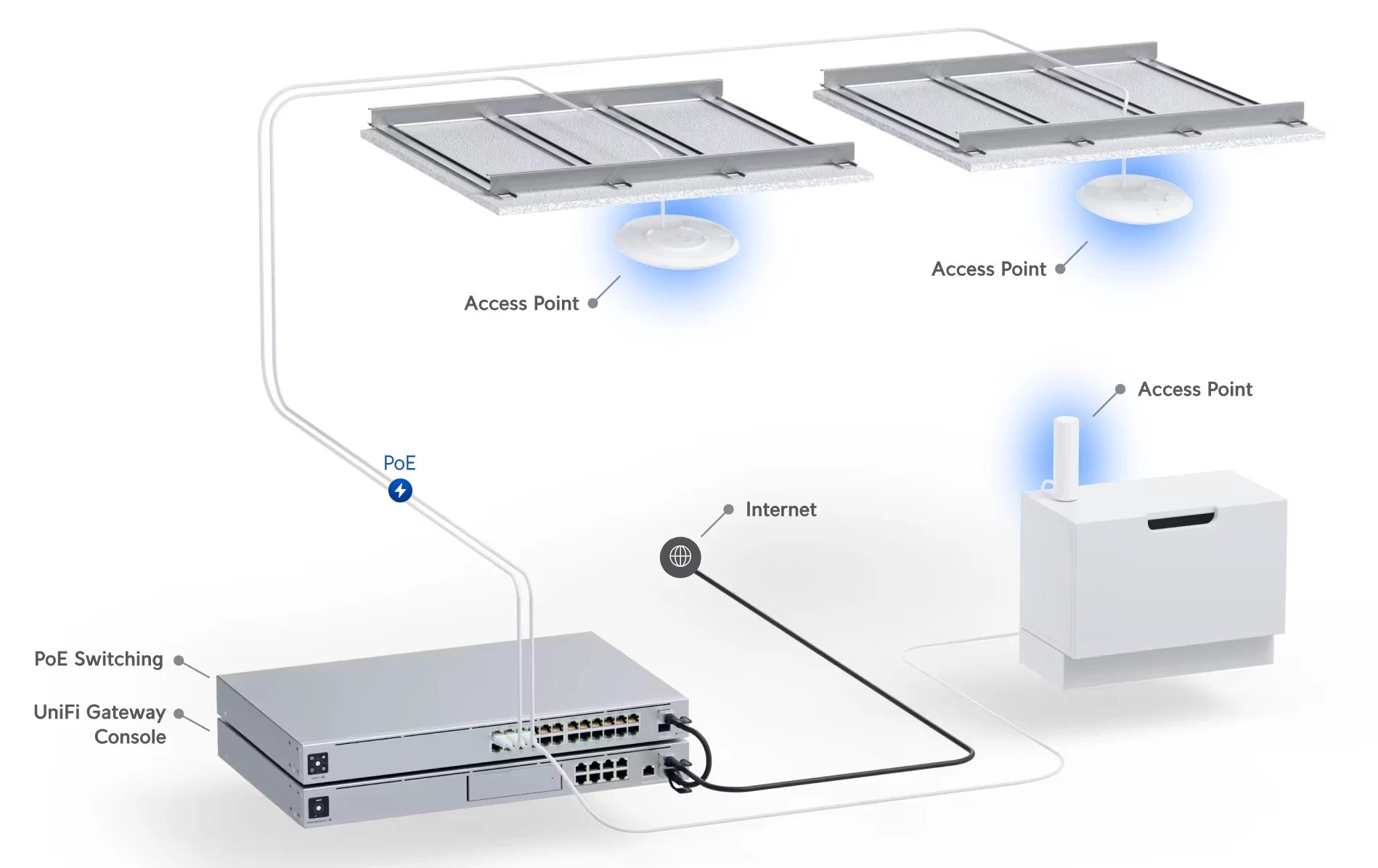

f. Wireless Network System

Whole-house Wi-Fi coverage is delivered via Ubiquiti UniFi ceiling and wall APs over Cat6 gigabit cabling:

• In-room data points connect to H3C enterprise gigabit switches;
• Wireless APs connect to UniFi PoE switches managed centrally by the UniFi Controller;
• H3C enterprise routers ensure ultra-stable internet routing.

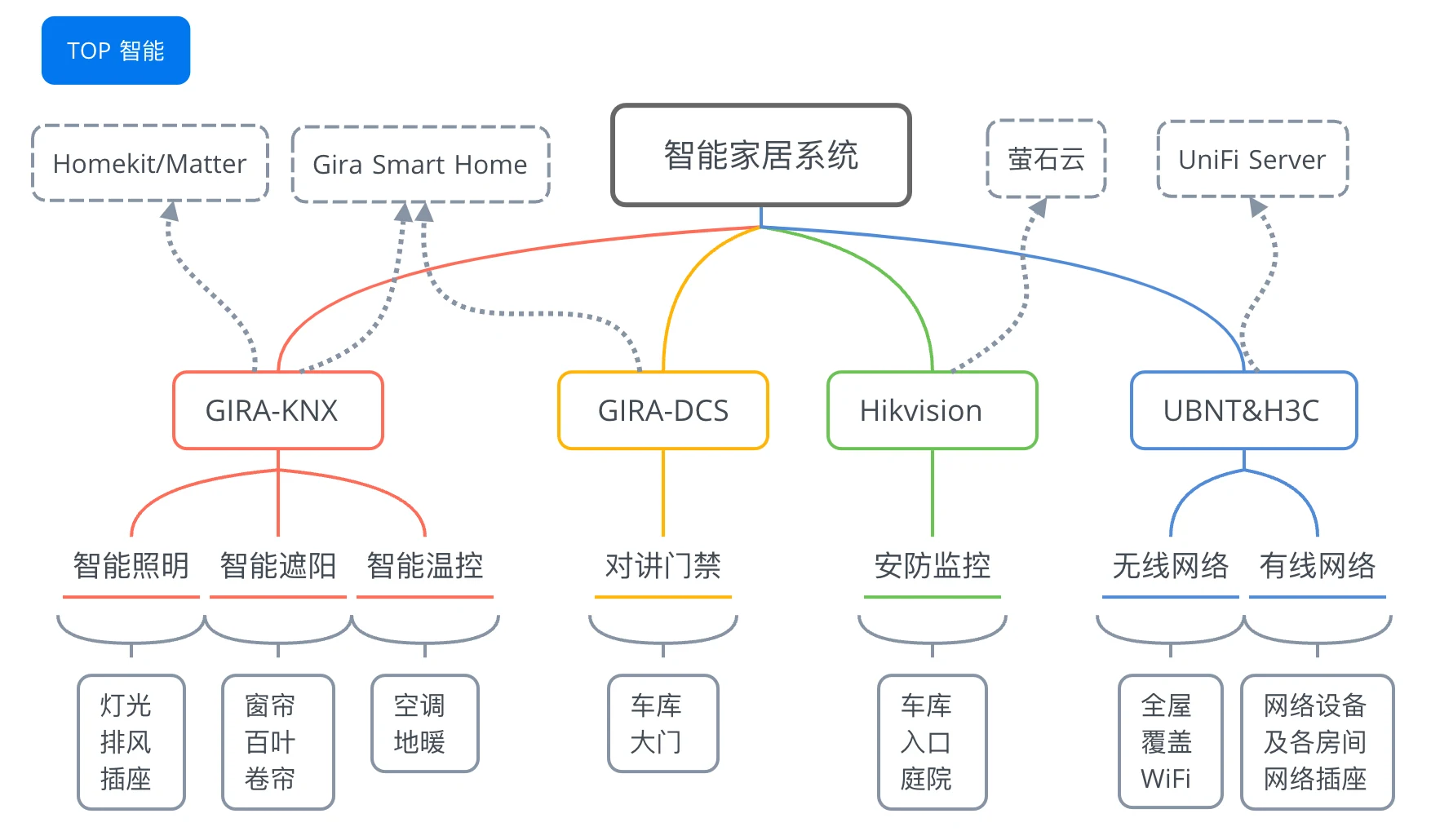

2.2 Smart System Architecture

The overall architecture illustrates:

• KNX System: Functions as the autonomous wired control base, running reliably offline;
• HomeKit & GIRA Smart Home: Serve as user-facing application layers for mobile control;
• Network or app interruptions never hinder local wall switch operation;
• The open KNX standard easily accommodates future protocol upgrades like Matter.

---

3. Engineering Design & Wiring

3.1 System Design

Based on client requirements and architectural drawings, TOP Smart produced complete CAD shop drawings—including keypad layouts, lighting circuits, curtain wiring, HVAC schematics, and low-voltage system diagrams:

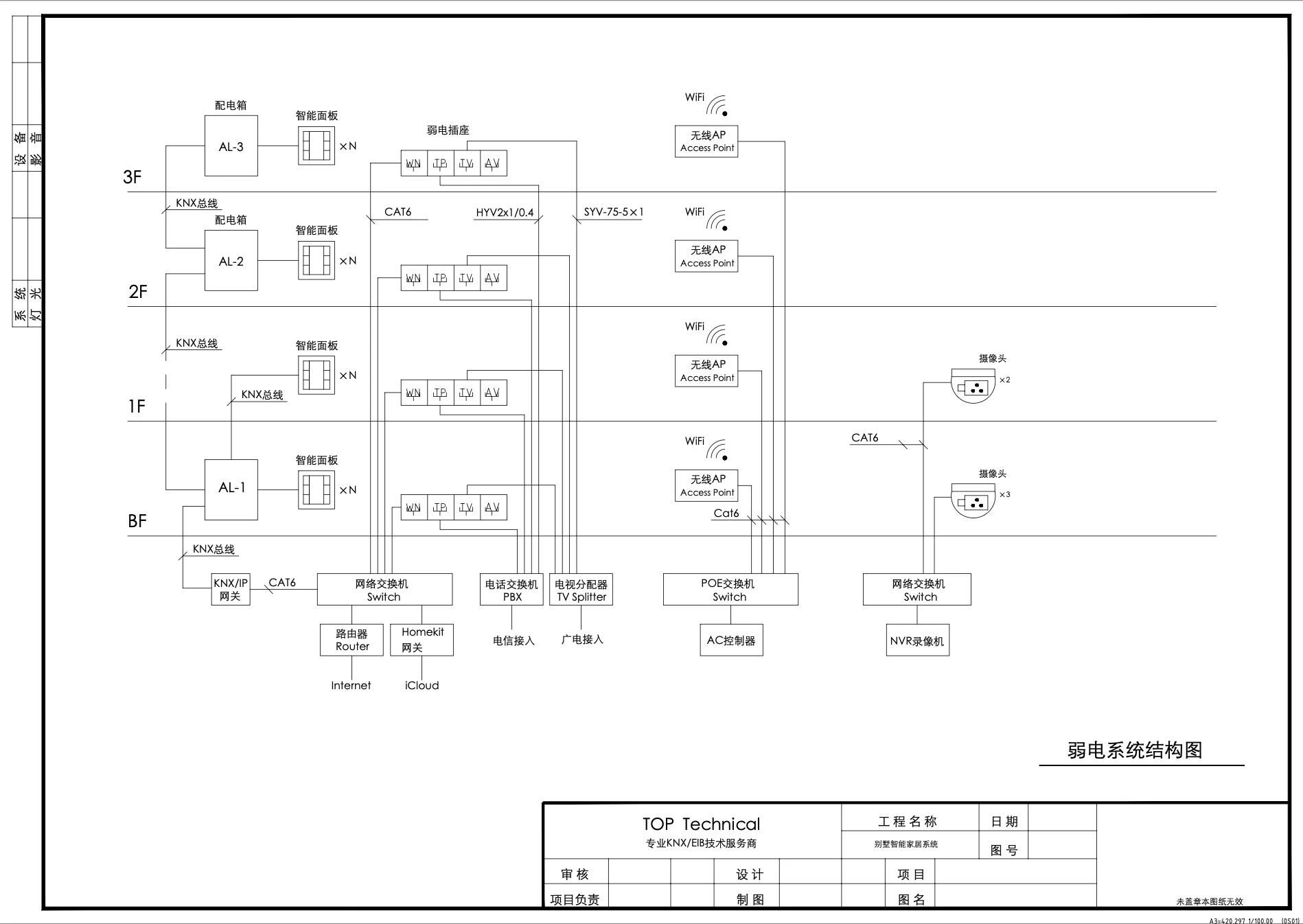

(▲ Low-voltage system schematic detailing sub-system cabling and topological hierarchy)

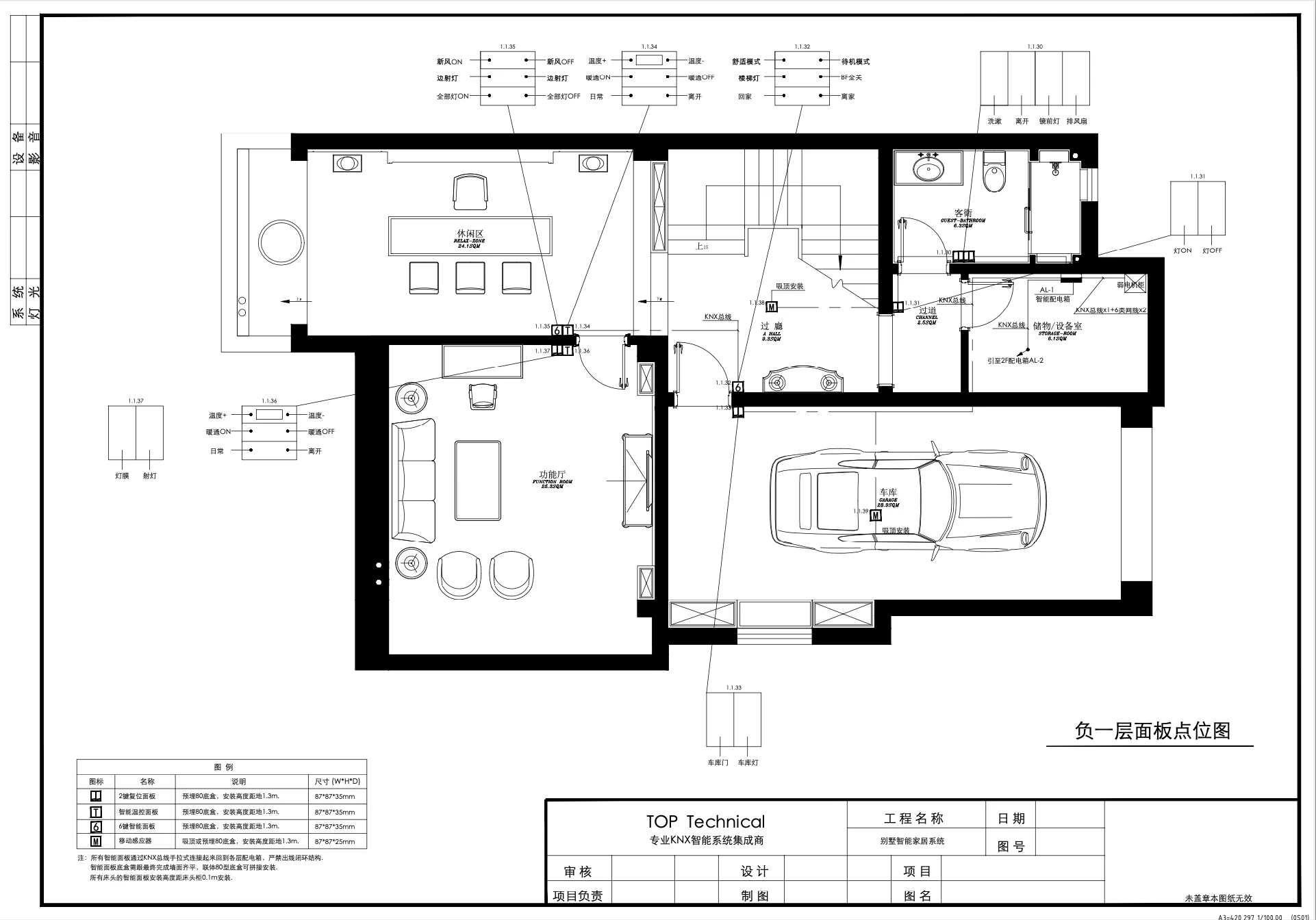

(▲ Keypad layout marking basement panel positions, button assignments, KNX routing, and garage welcome sensors)

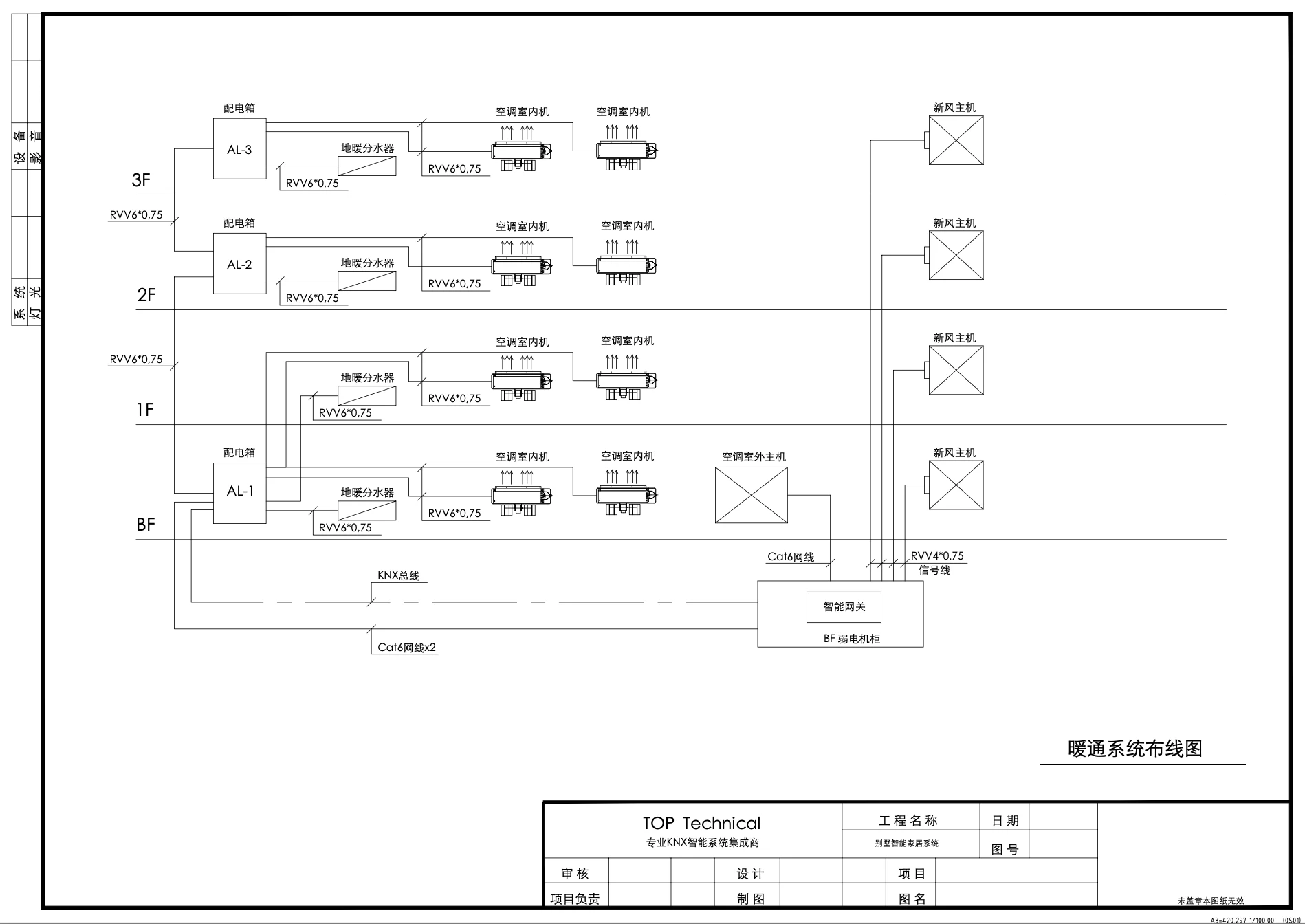

(▲ HVAC schematic specifying fan coil unit connections, manifold valve control lines, and fresh air signal cables)

(▲ Low-voltage layout indicating Wi-Fi AP points, camera angles, garage door dry contacts, and rack room routing)

3.2 Onsite Electrical Rough-in

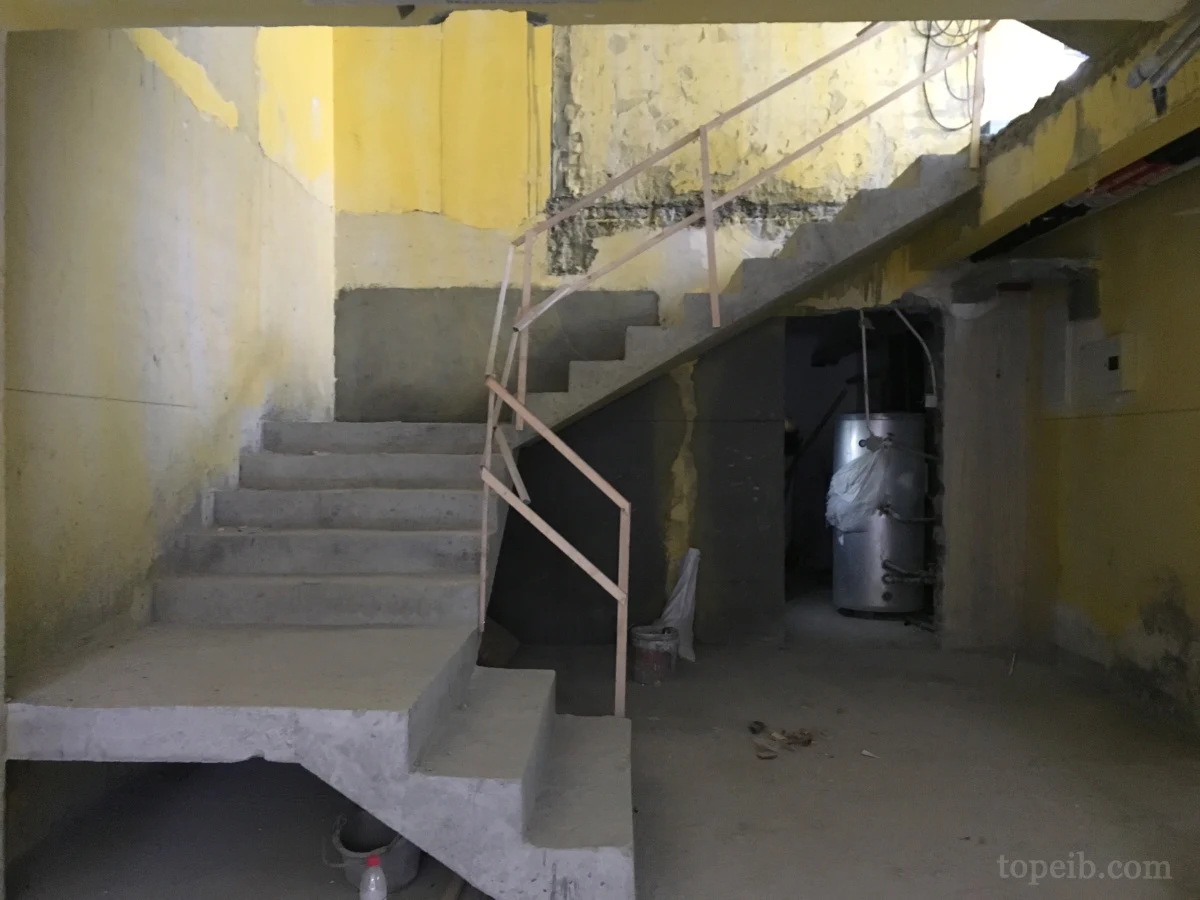

(▲ Pre-construction onsite briefing with electrical contractors, updating drawings and aligning with HVAC technicians)

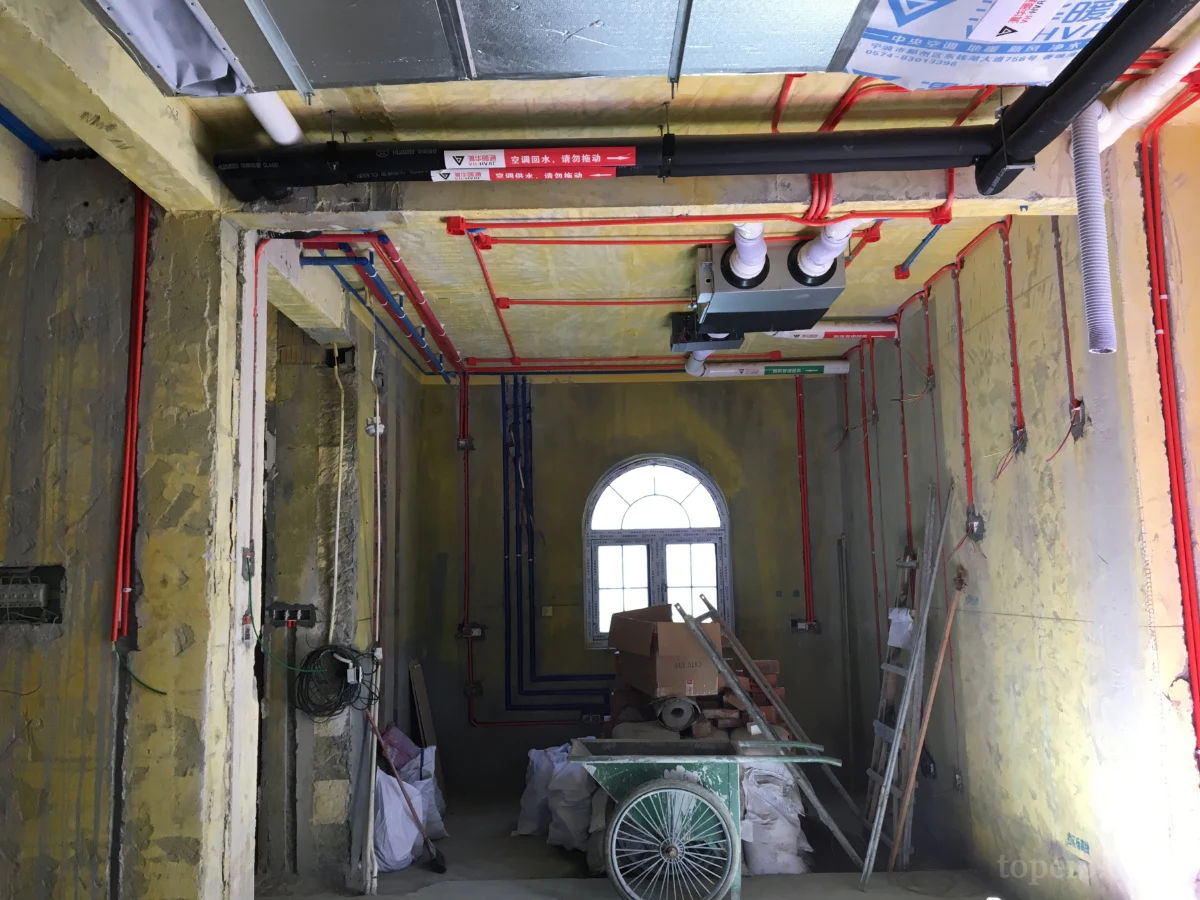

(▲ Routine inspection checking lighting conduits, sensor placements, and HVAC lines before wall closing)

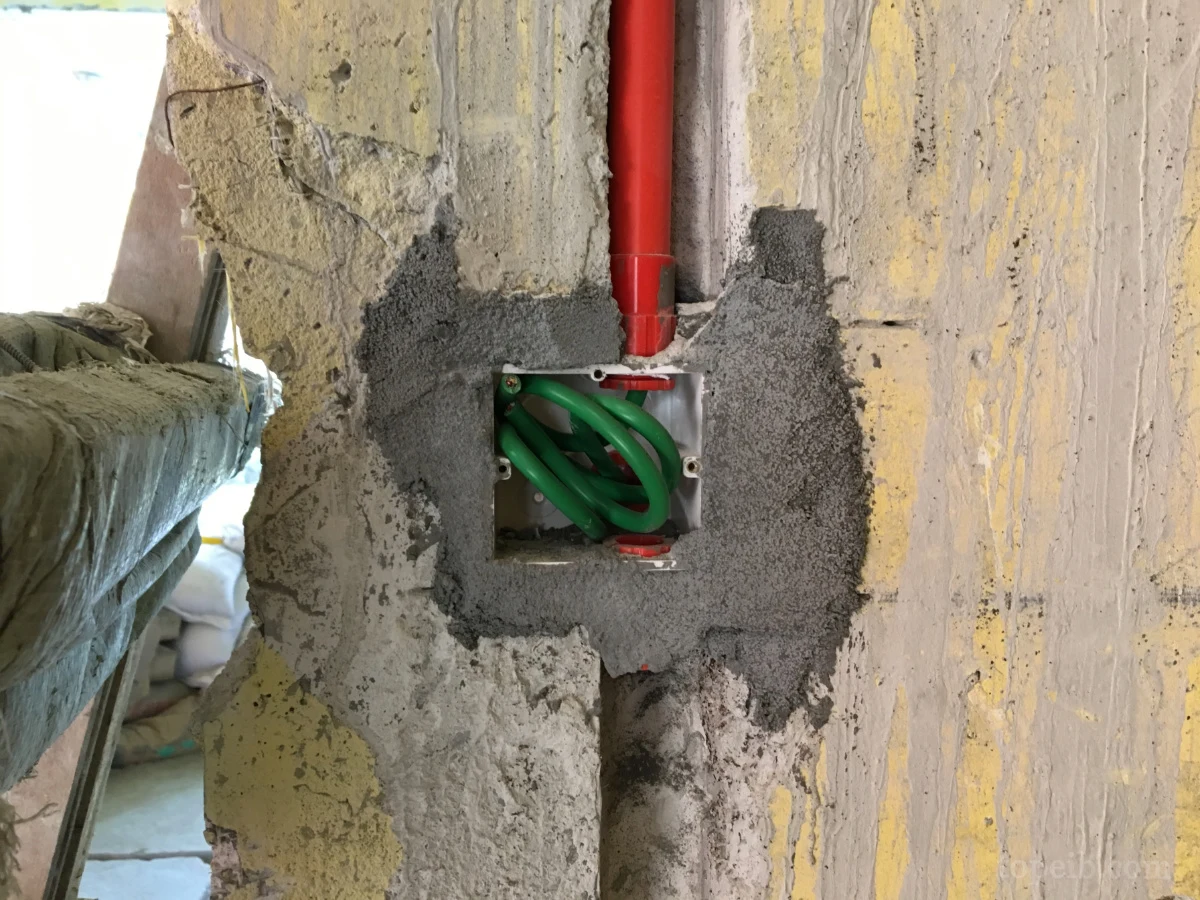

(▲ Pre-embedding European standard 80 circular backboxes with green 4-core KNX bus cabling for GIRA keypads)

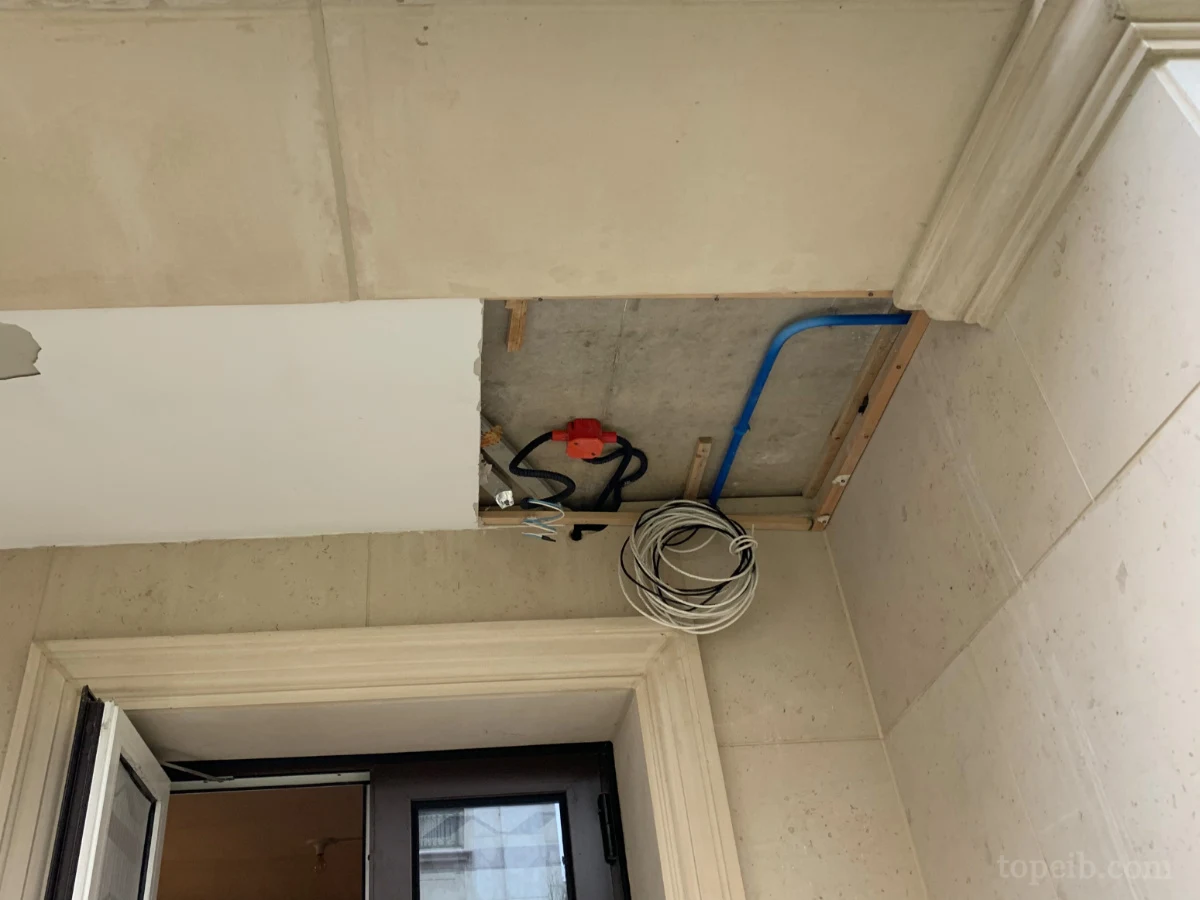

(▲ Outdoor garden cables for APs and cameras routed directly to the basement equipment rack)

(▲ Sizing and flush-mounting sub-distribution panels housing circuit breakers, surge protectors, and KNX actuators)

---

4. Hardware Installation & Commissioning

4.1 Low-Voltage Hardware Installation

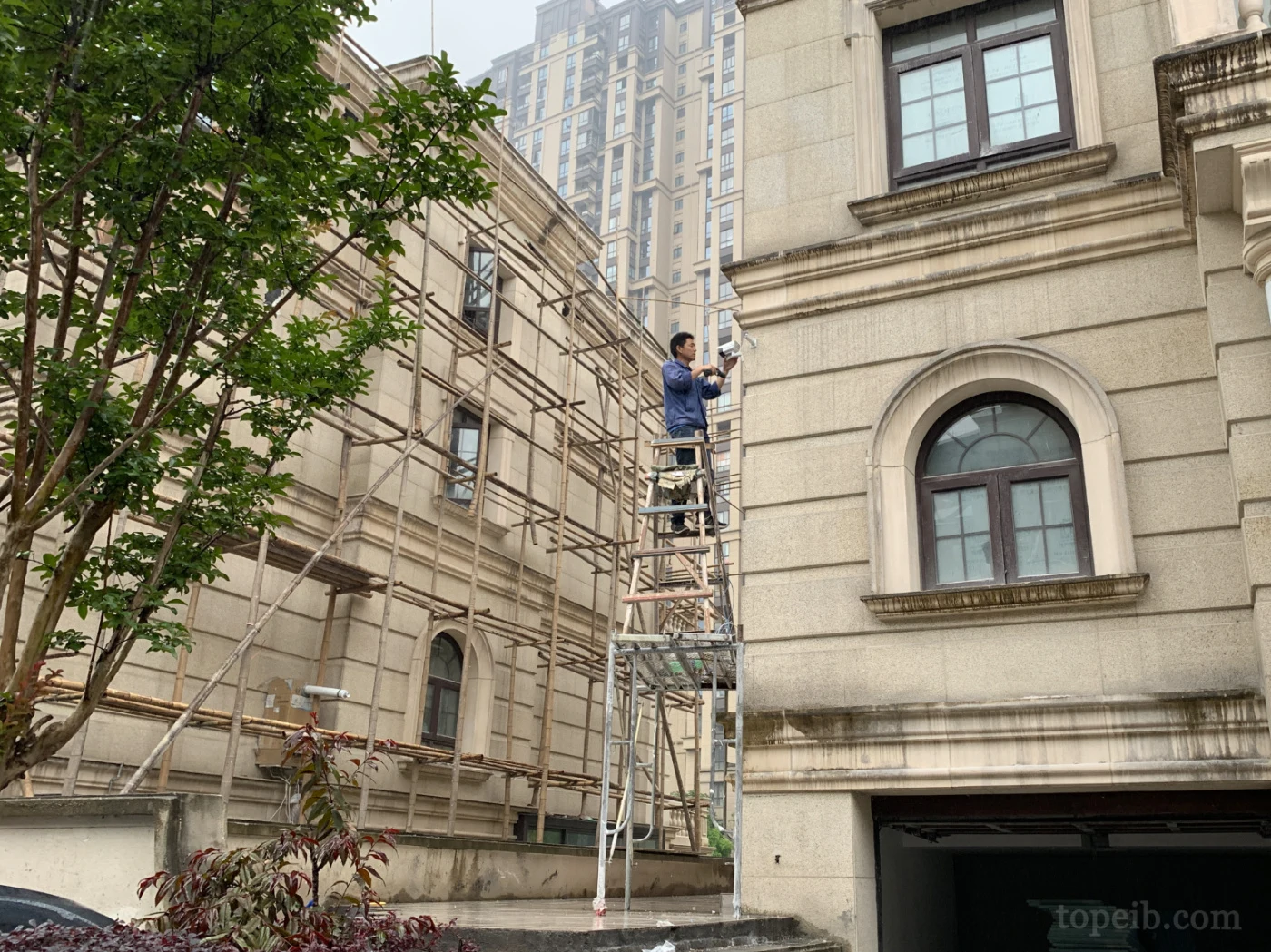

(▲ Installing PoE infrared cameras around the villa perimeter and garage entrance for 24/7 recording)

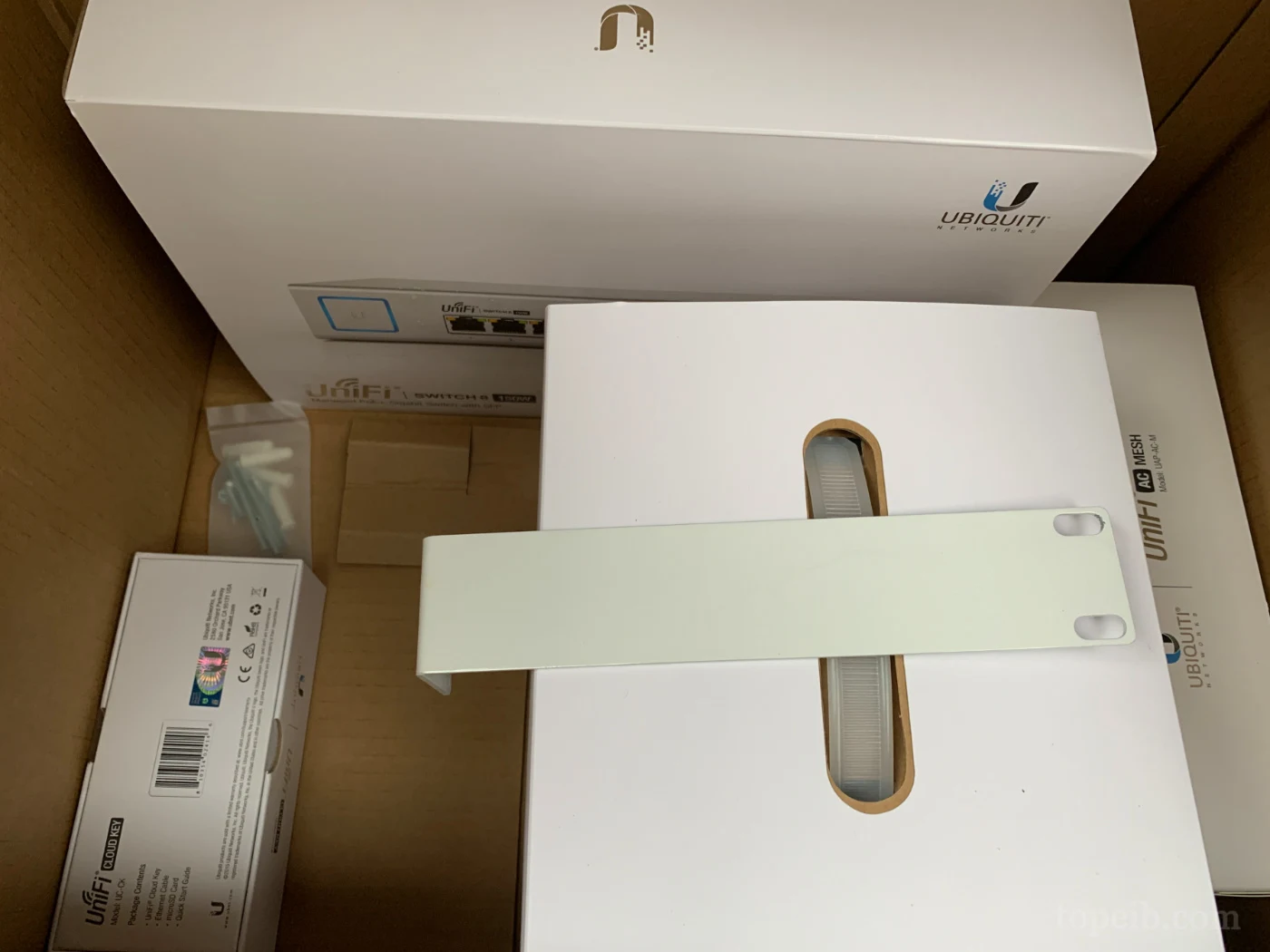

(▲ UniFi suite including ceiling APs, outdoor APs, PoE switches, and AC controller for seamless roaming)

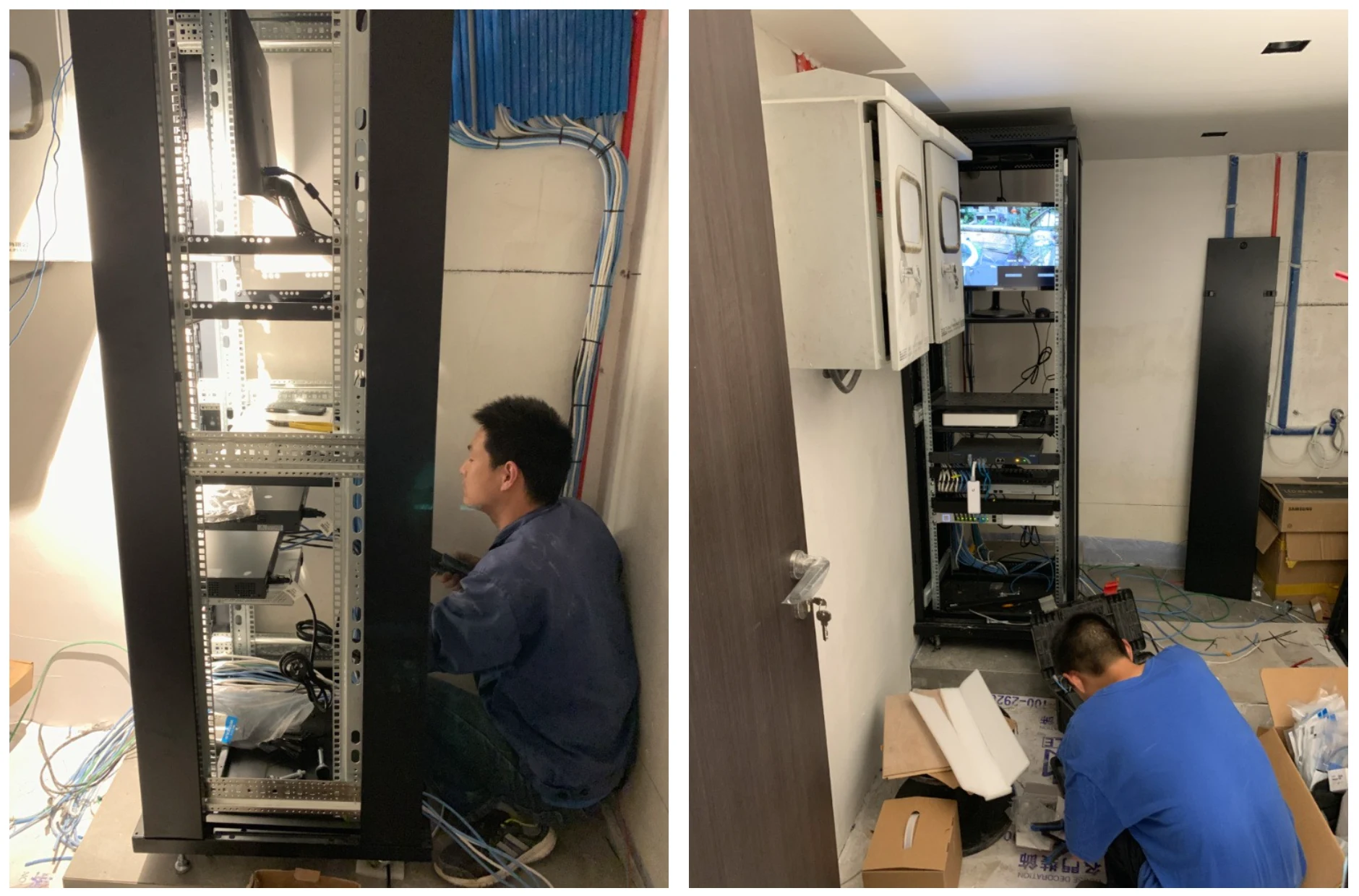

(▲ Equipment rack hosting NVRs, H3C routers, UniFi PoE switches, and intercom gateways with laminated cable labels)

4.2 Smart Device Assembly & Addressing

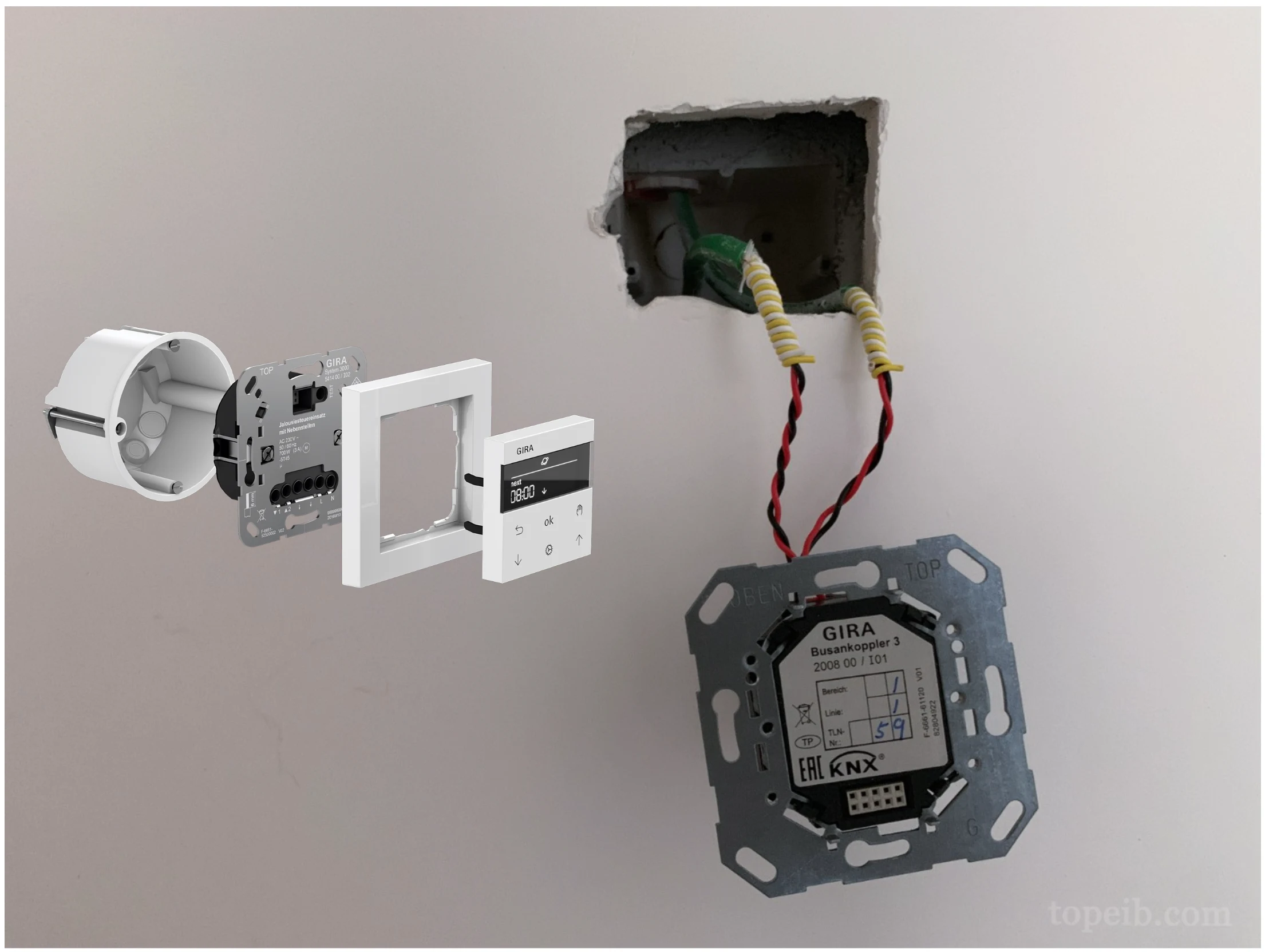

(▲ Installing GIRA bus couplers; green/red lines connect to KNX bus with unique ETS physical addresses assigned)

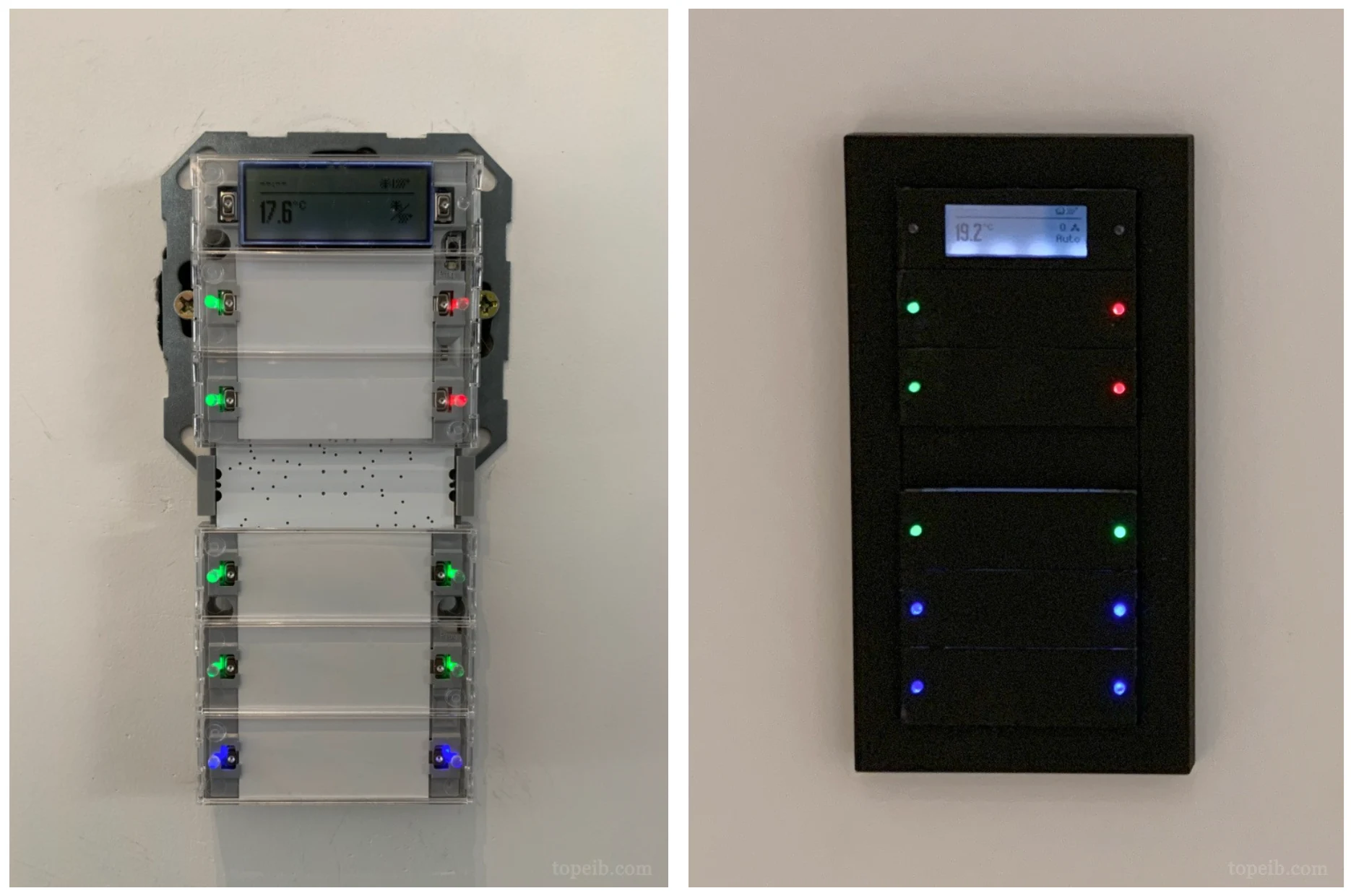

(▲ Keypad bases installed with transparent protective covers during rough construction to prevent dust and scratches)

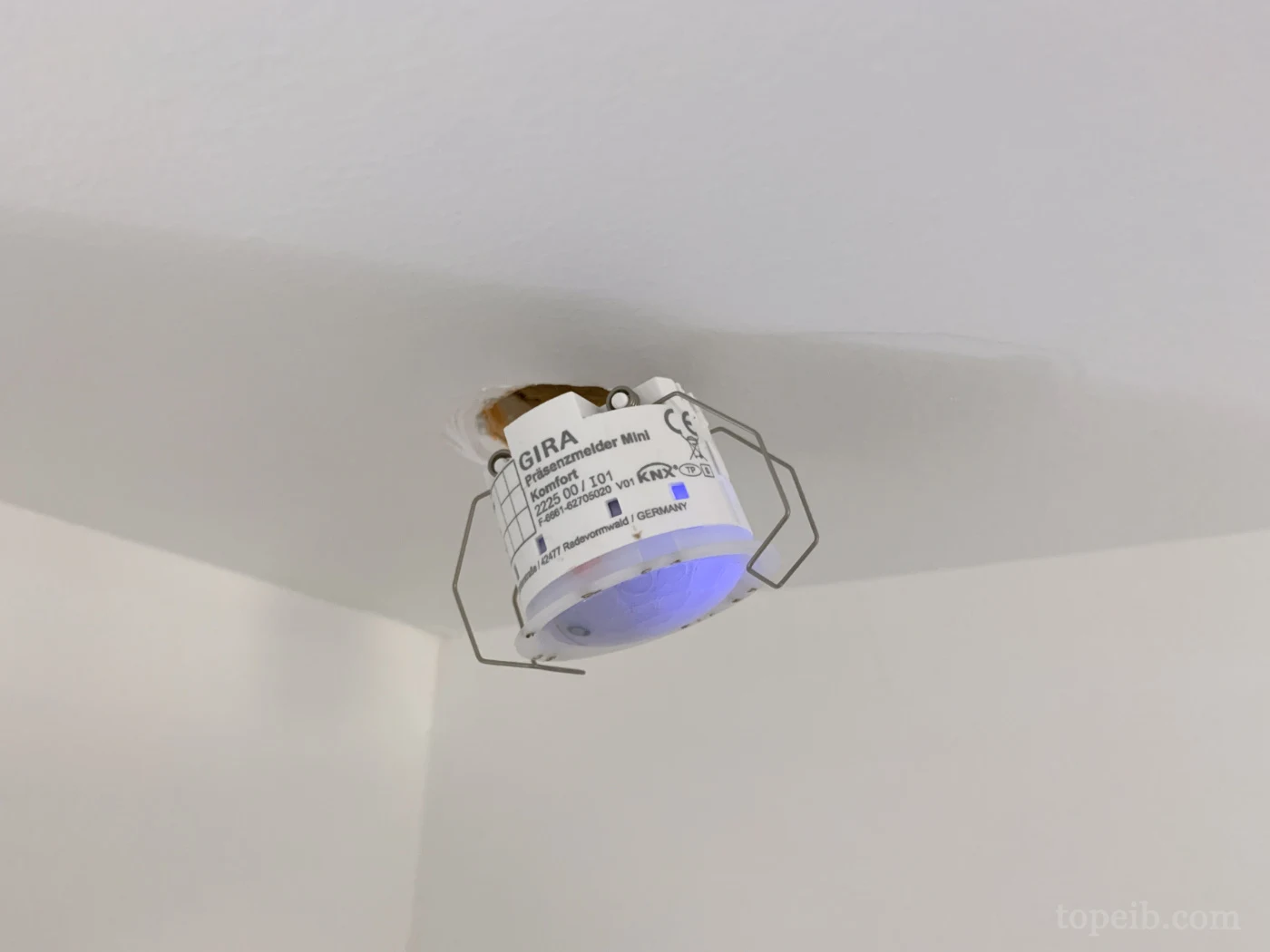

(▲ Daylight-harvesting motion sensors configured for ceiling or wall mounting with directional field-of-view)

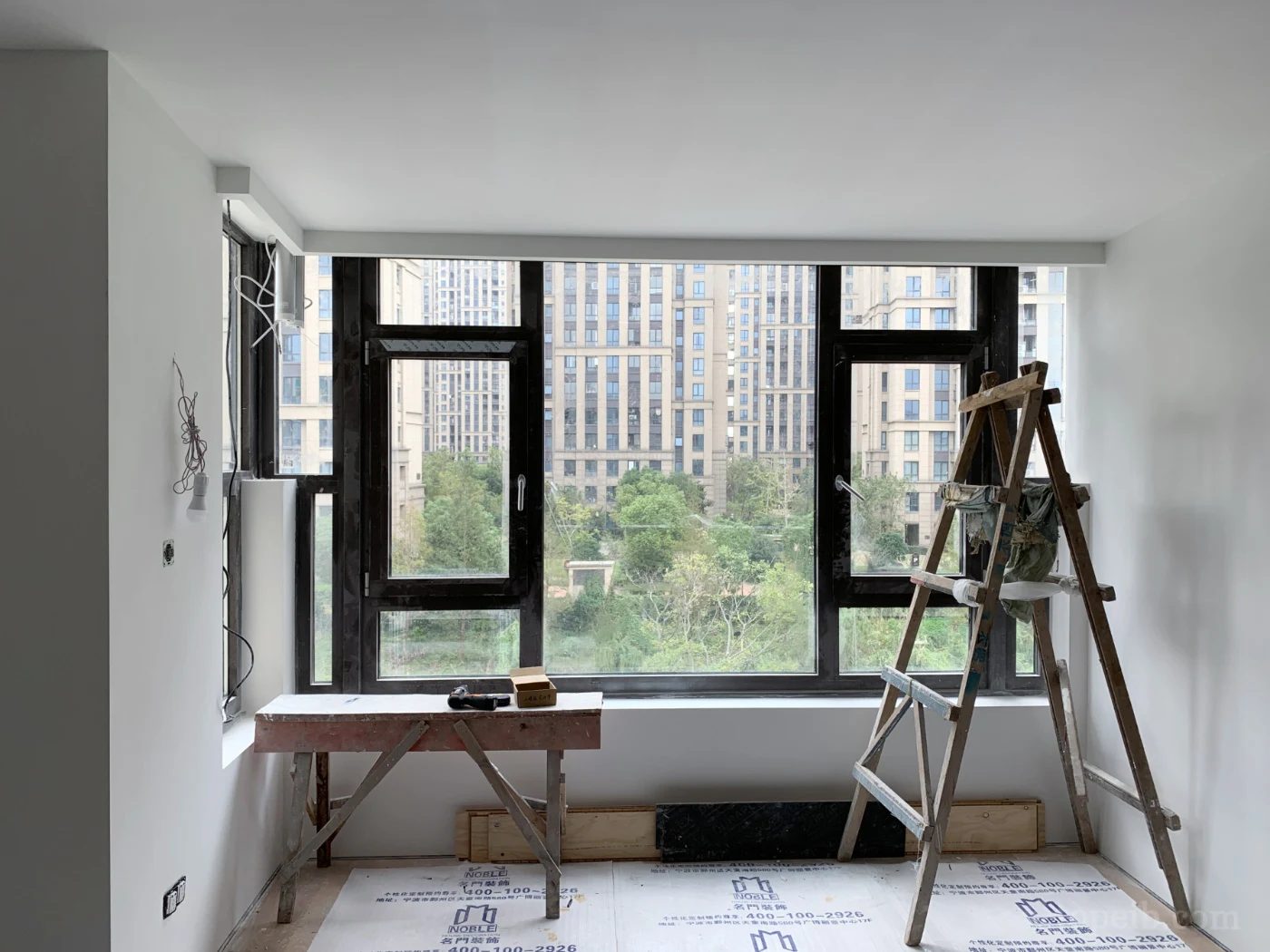

(▲ 200mm+ pelmet width ensured for dual-track sheer and blackout curtains with direct AC power control)

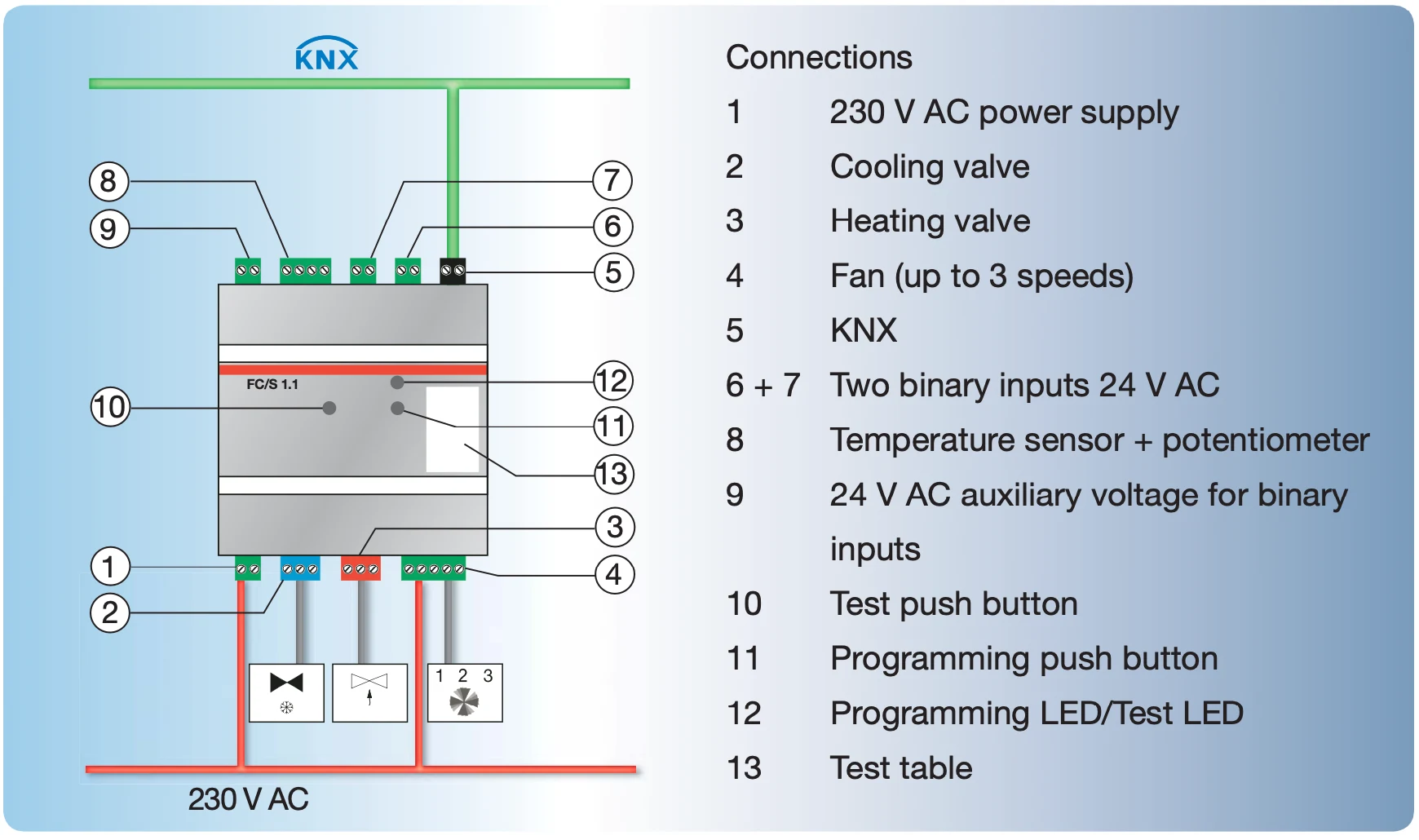

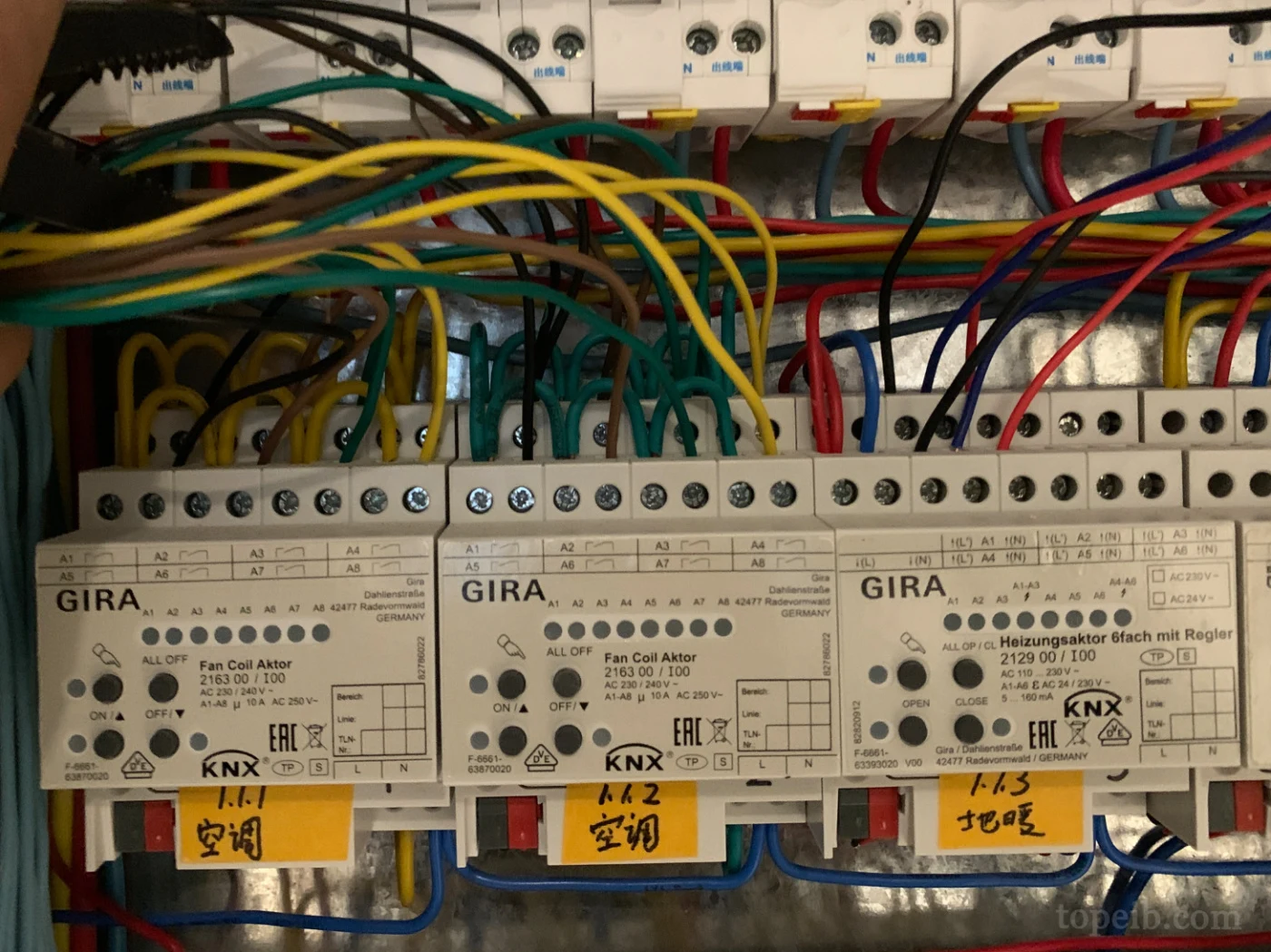

(▲ Connecting 3-speed fan coil lines and manifold thermal actuators to KNX climate modules)

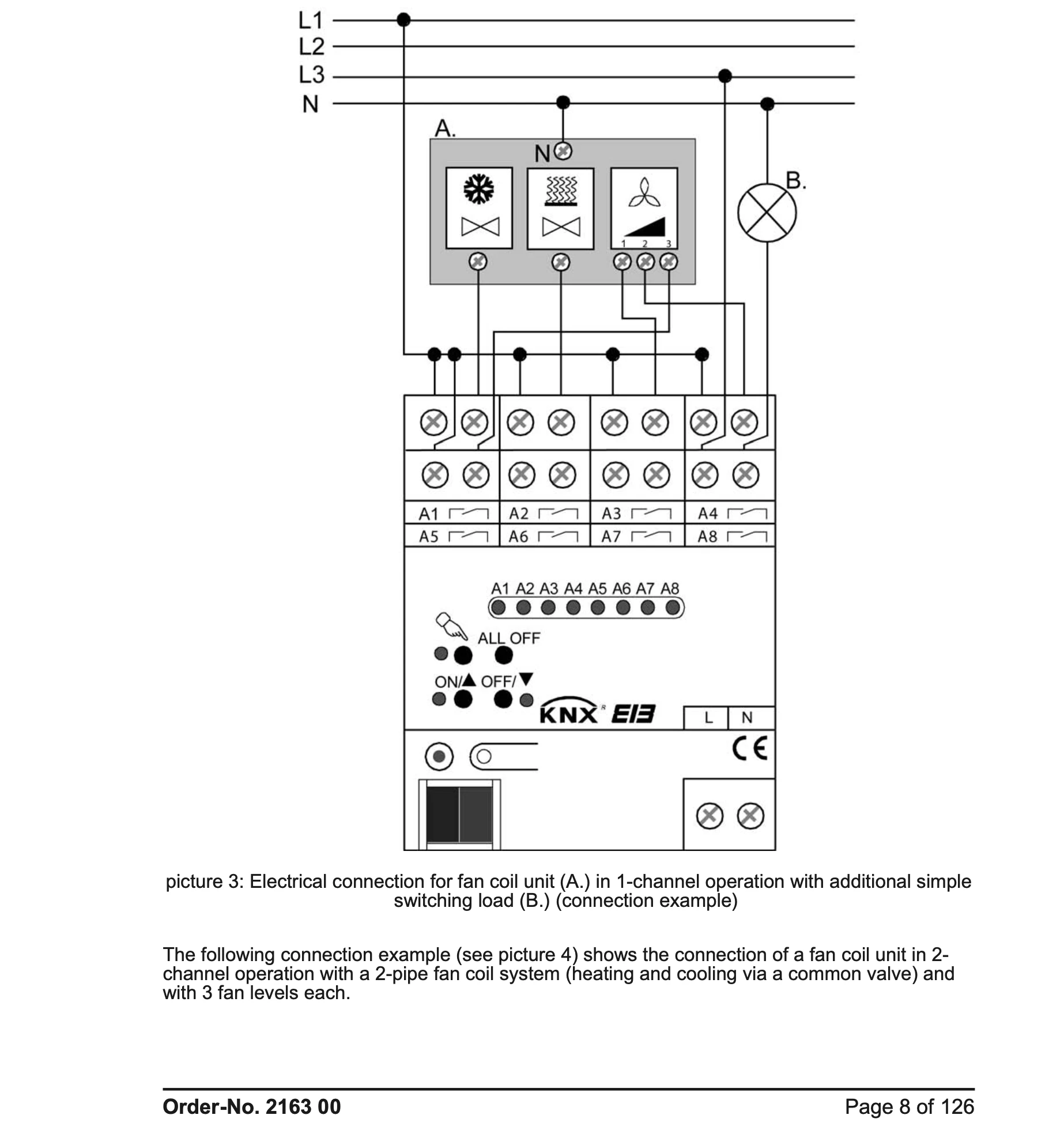

(▲ In-depth technical documentation studied to configure specialized module parameters)

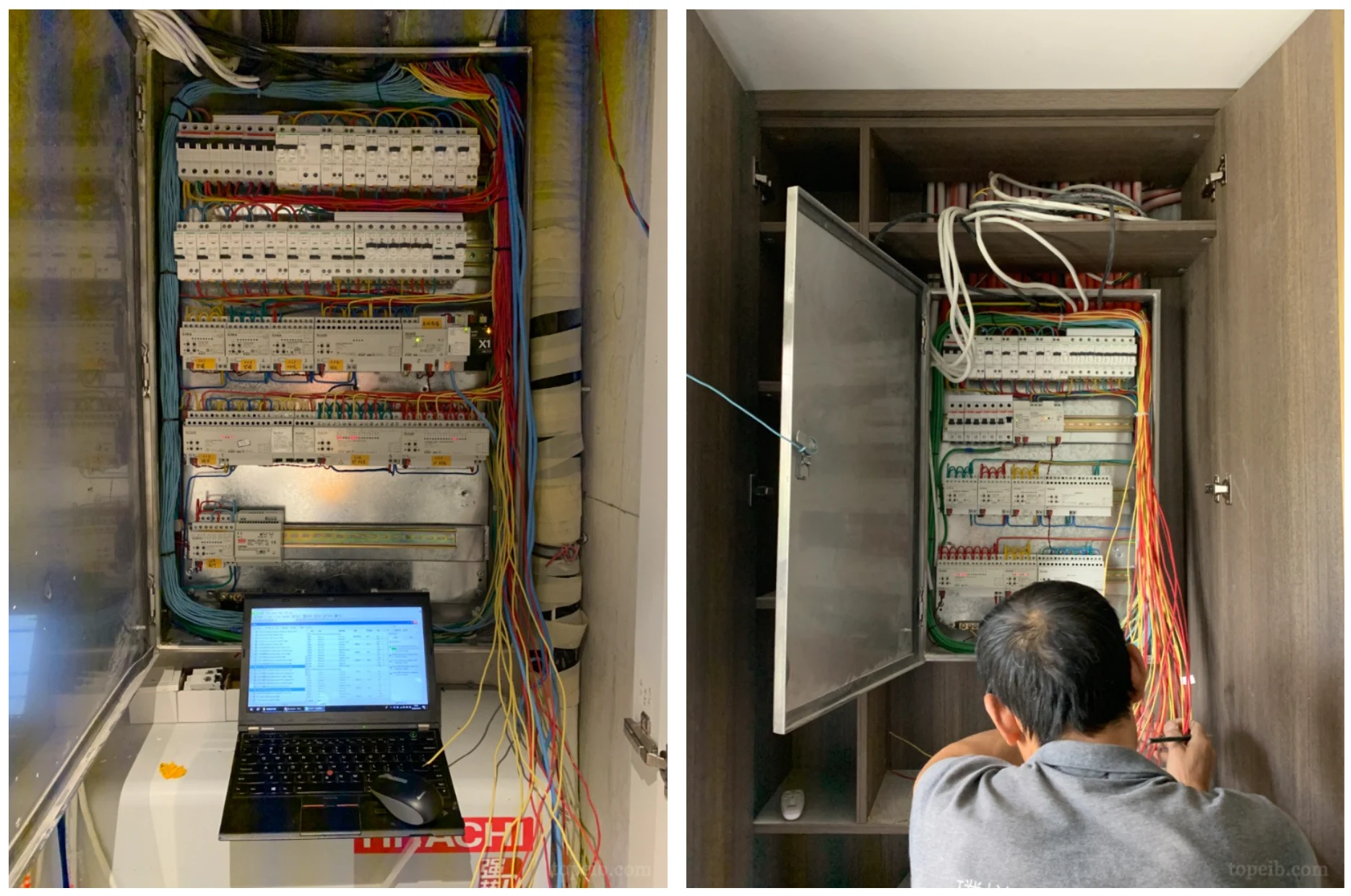

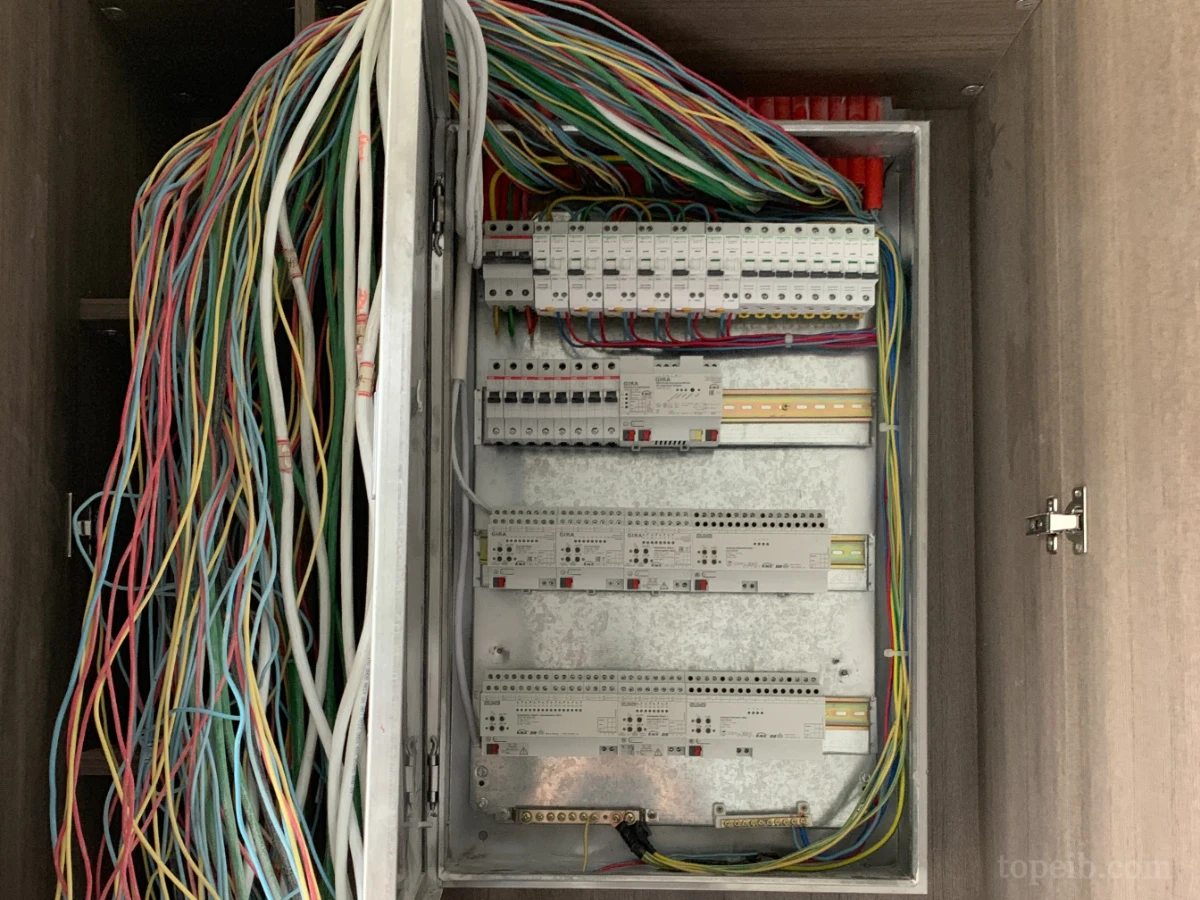

(▲ Wiring switched lighting, dimming, and motorized shades onto numbered DIN-rail KNX modules)

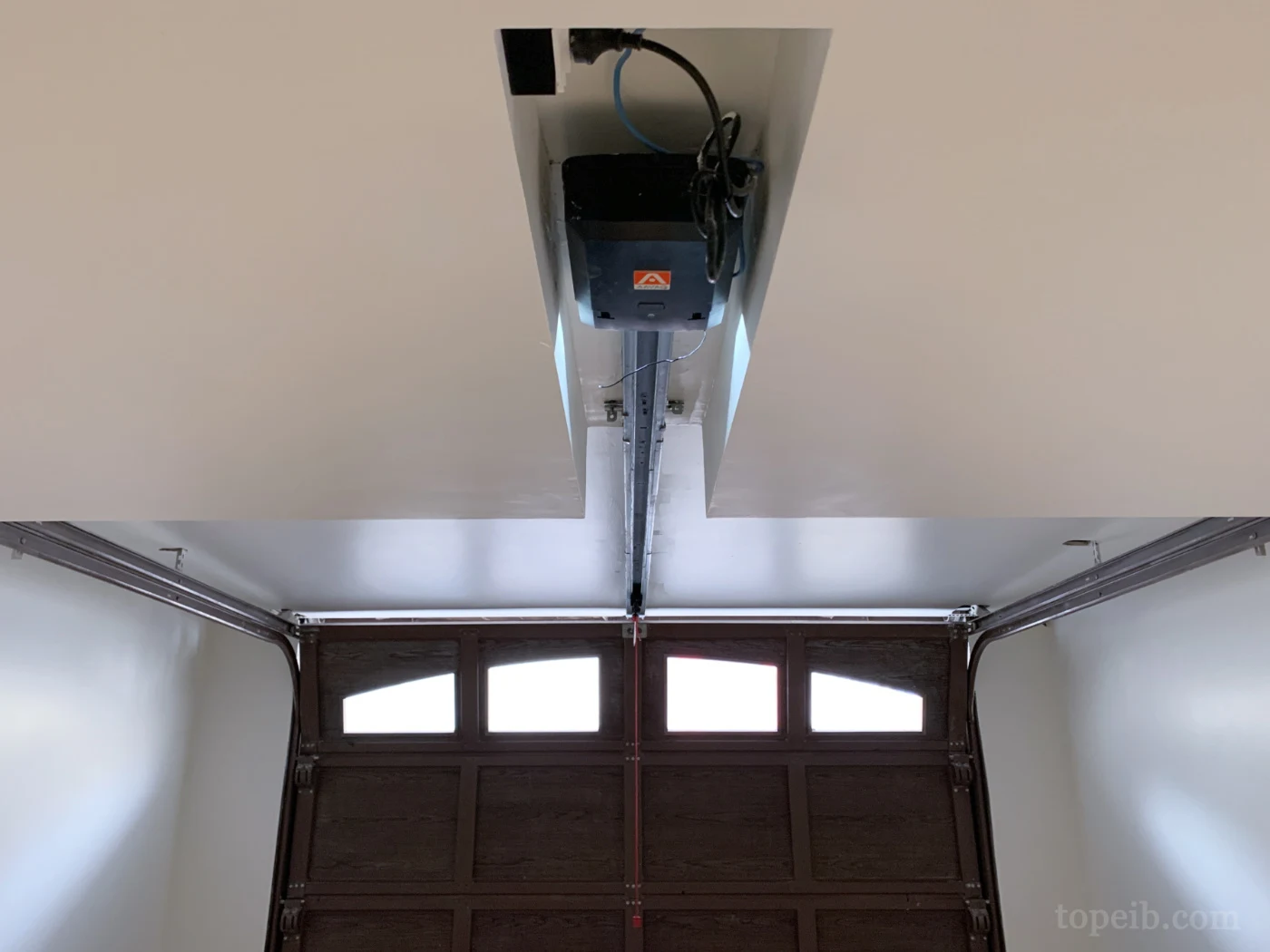

(▲ Garage door motor linked via low-voltage dry contacts for intercom and mobile app operation)

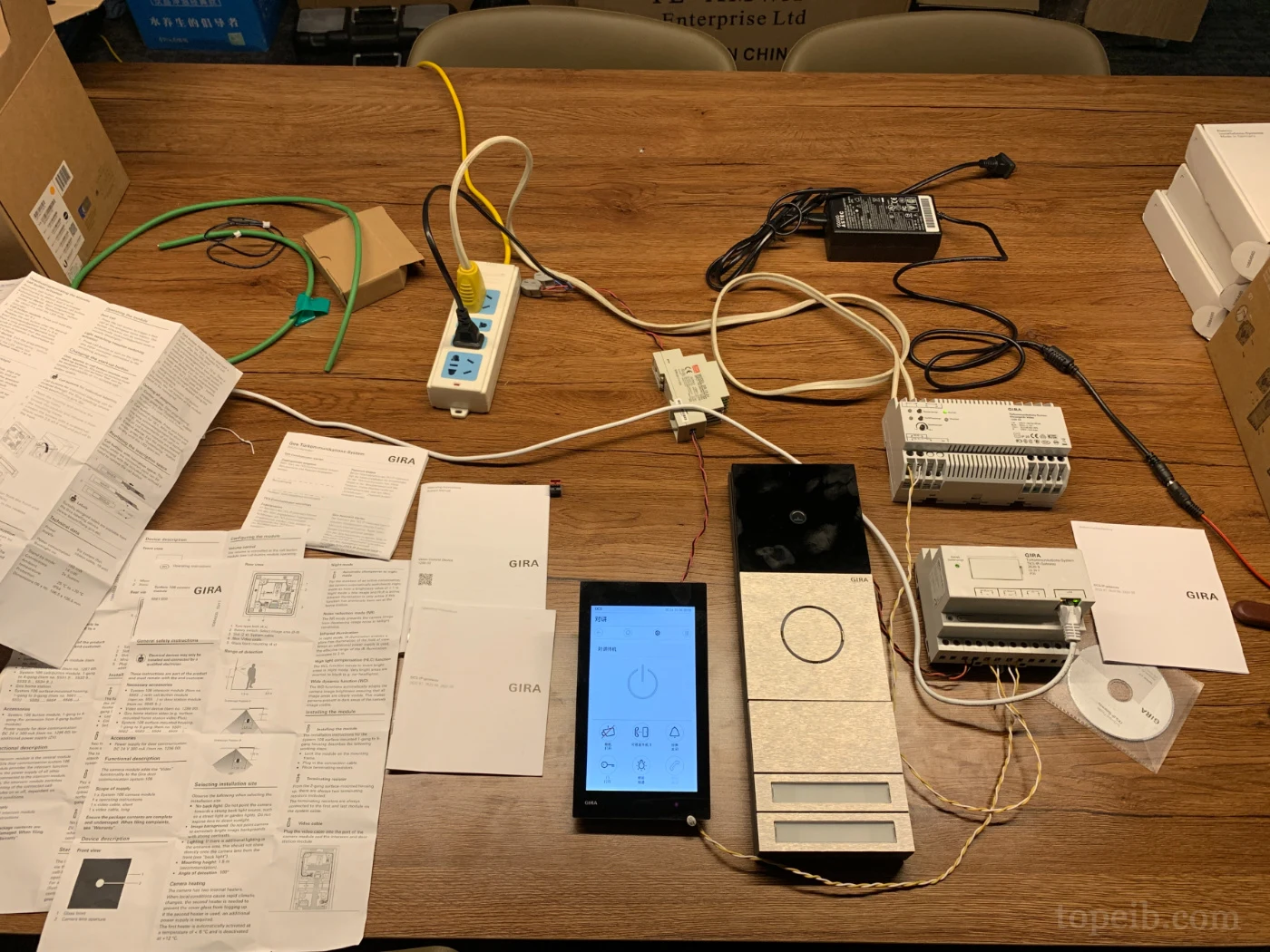

(▲ Pre-configuring GIRA DCS intercom hardware in the lab prior to onsite installation)

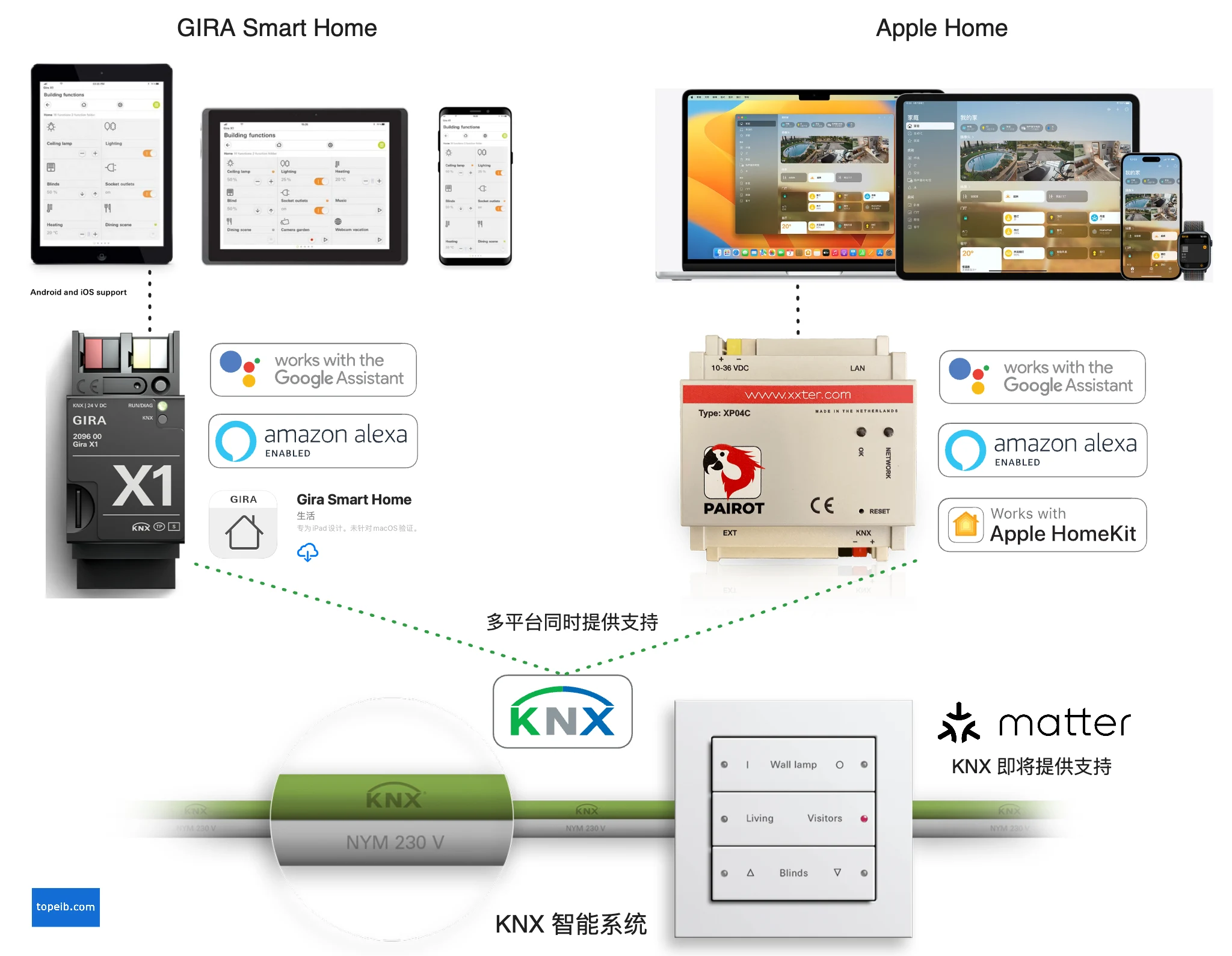

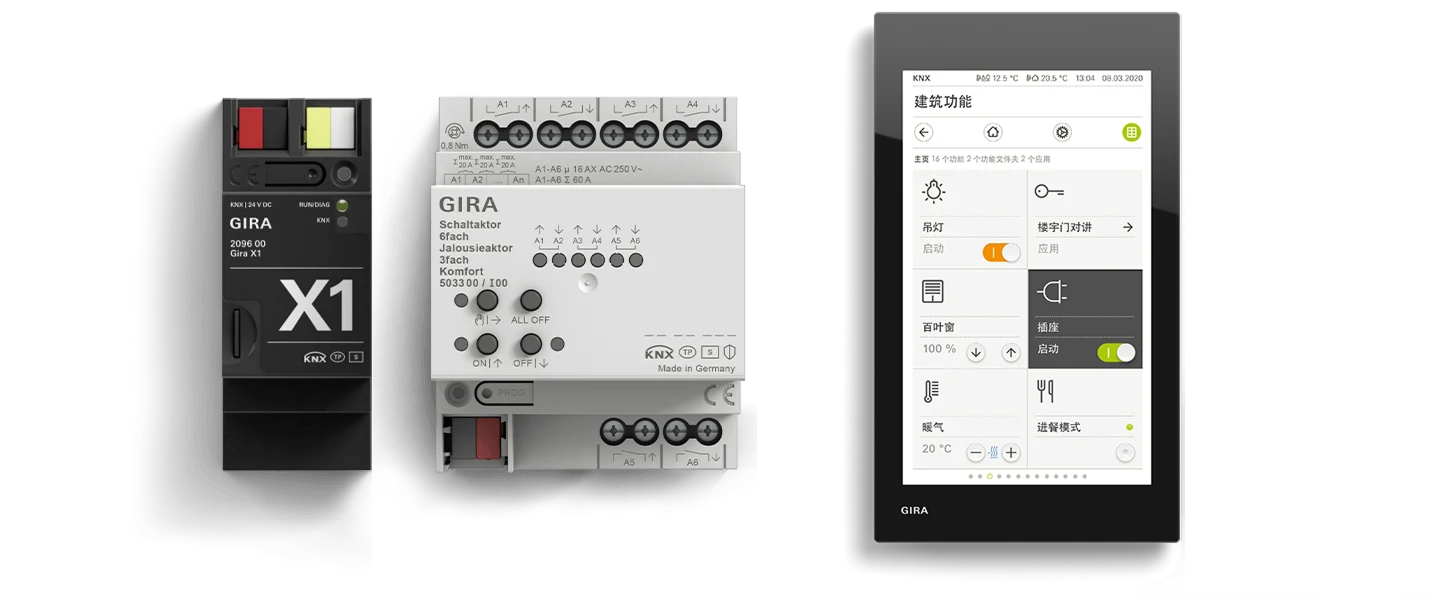

(▲ Dual-platform commissioning: GIRA X1 Gateway for native app control and Pairot Gateway for Apple HomeKit/Siri)

---

5. Handover & Living Experience

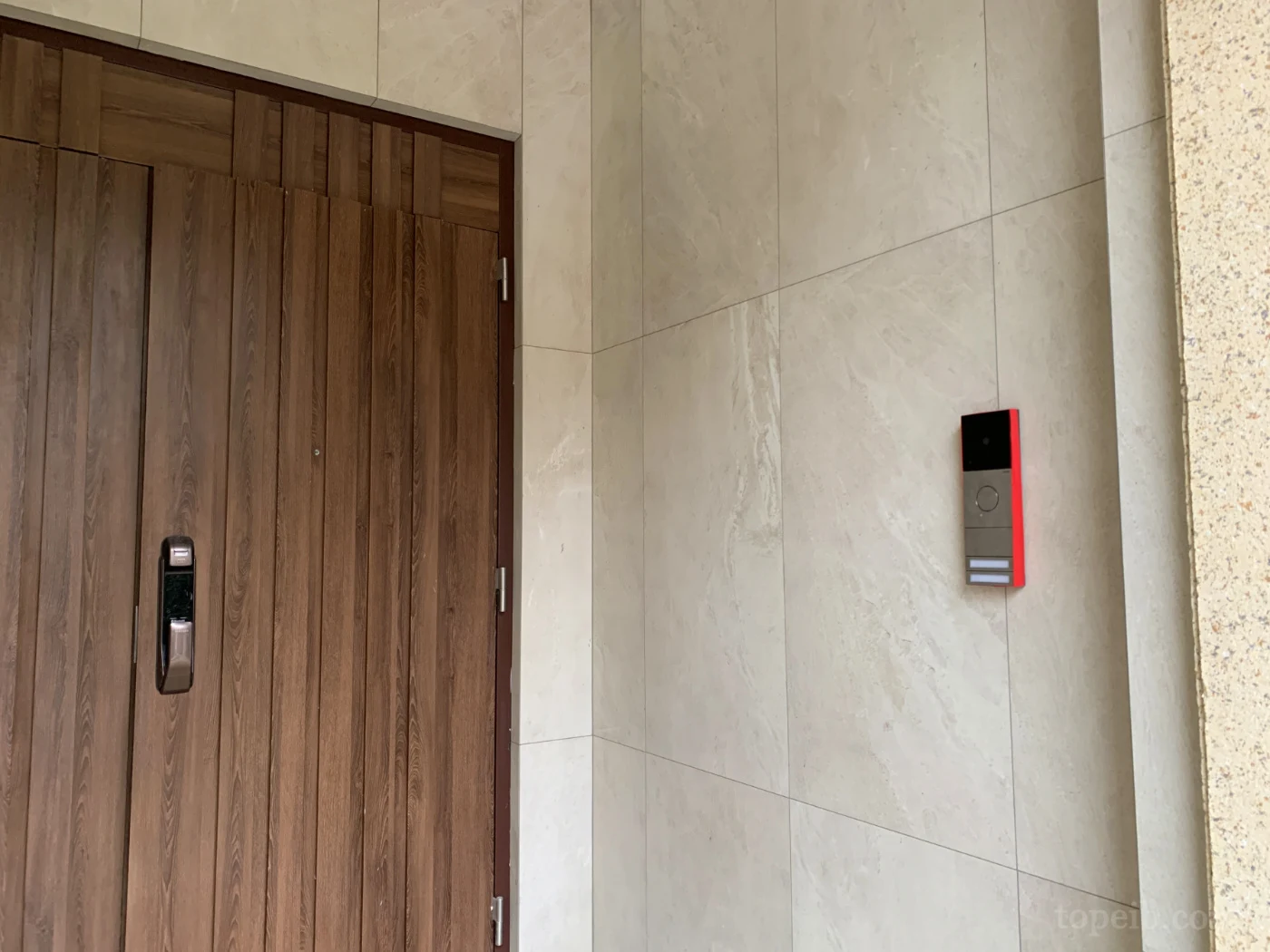

(▲ Outdoor GIRA System 106 door station streaming live video to indoor screens with optional electric strike release)

(▲ Foyer ceiling sensor activating welcoming light upon entry at dusk; backlit keypad features Home and Away scenes)

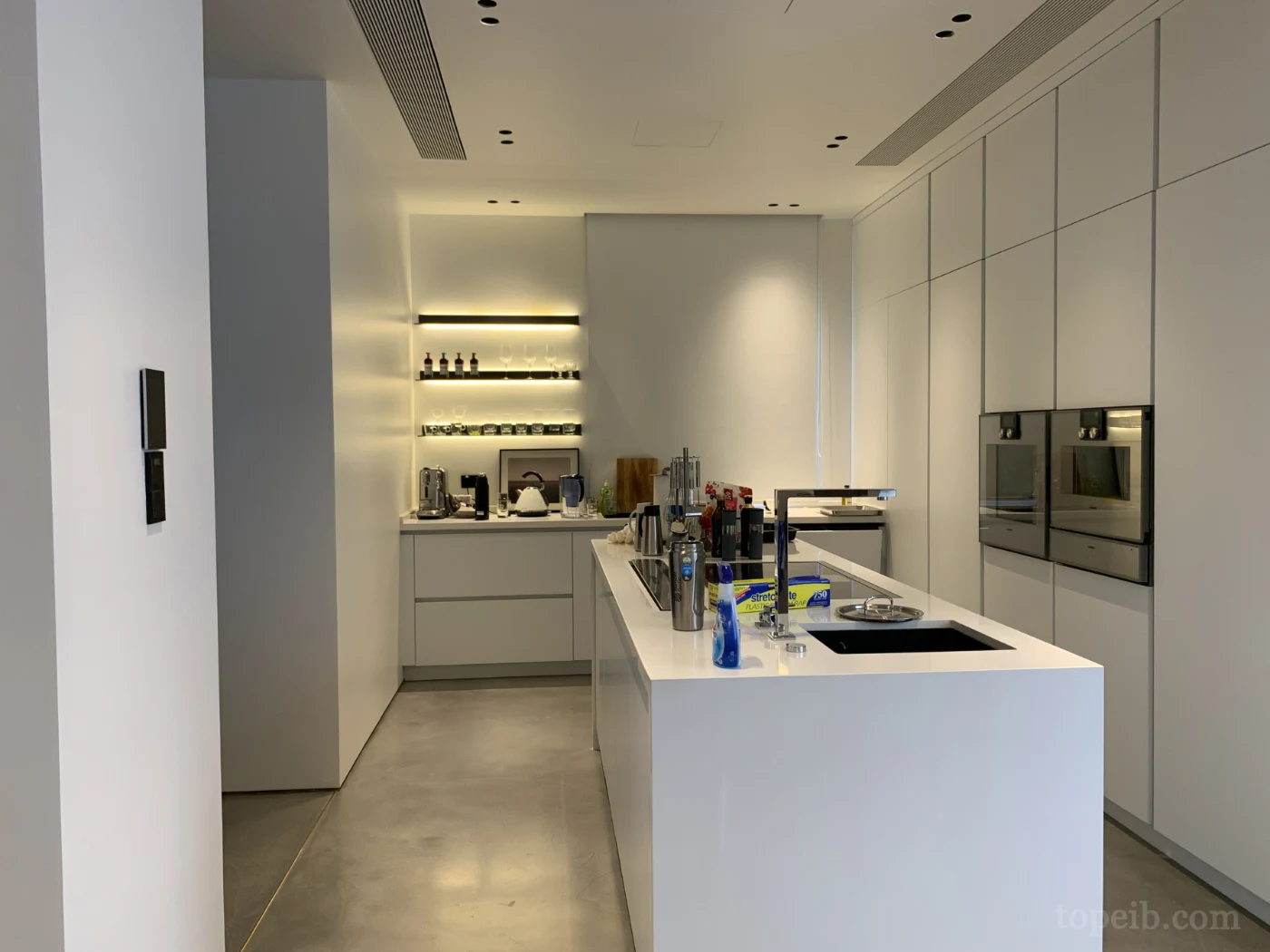

(▲ Dimmable kitchen downlights with soft-start fading; wall keypad consolidates lighting, HVAC, and roller blinds)

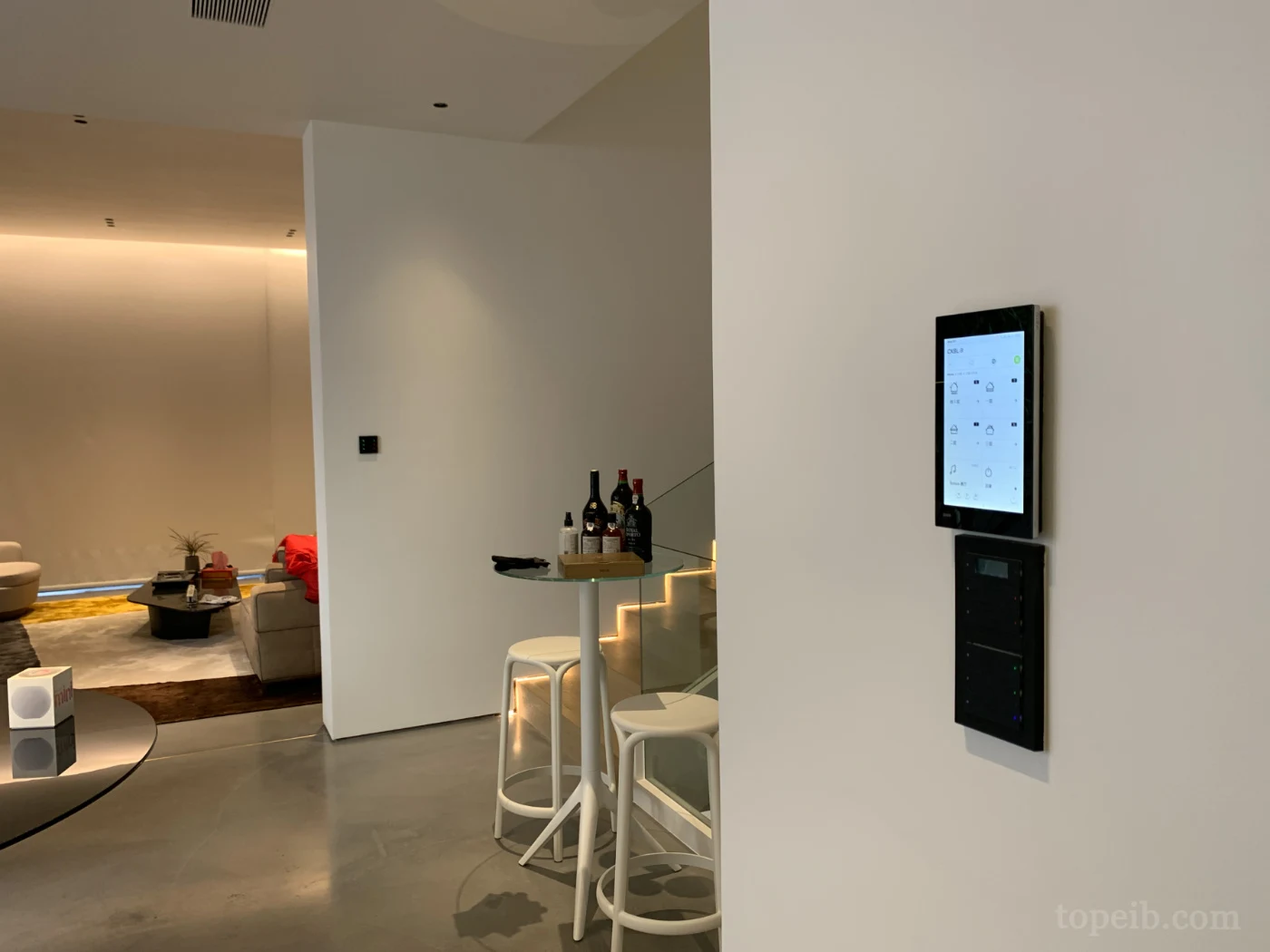

(▲ Central GIRA G1 display managing whole-house lighting, climate, Sonos audio, and video intercom calls)

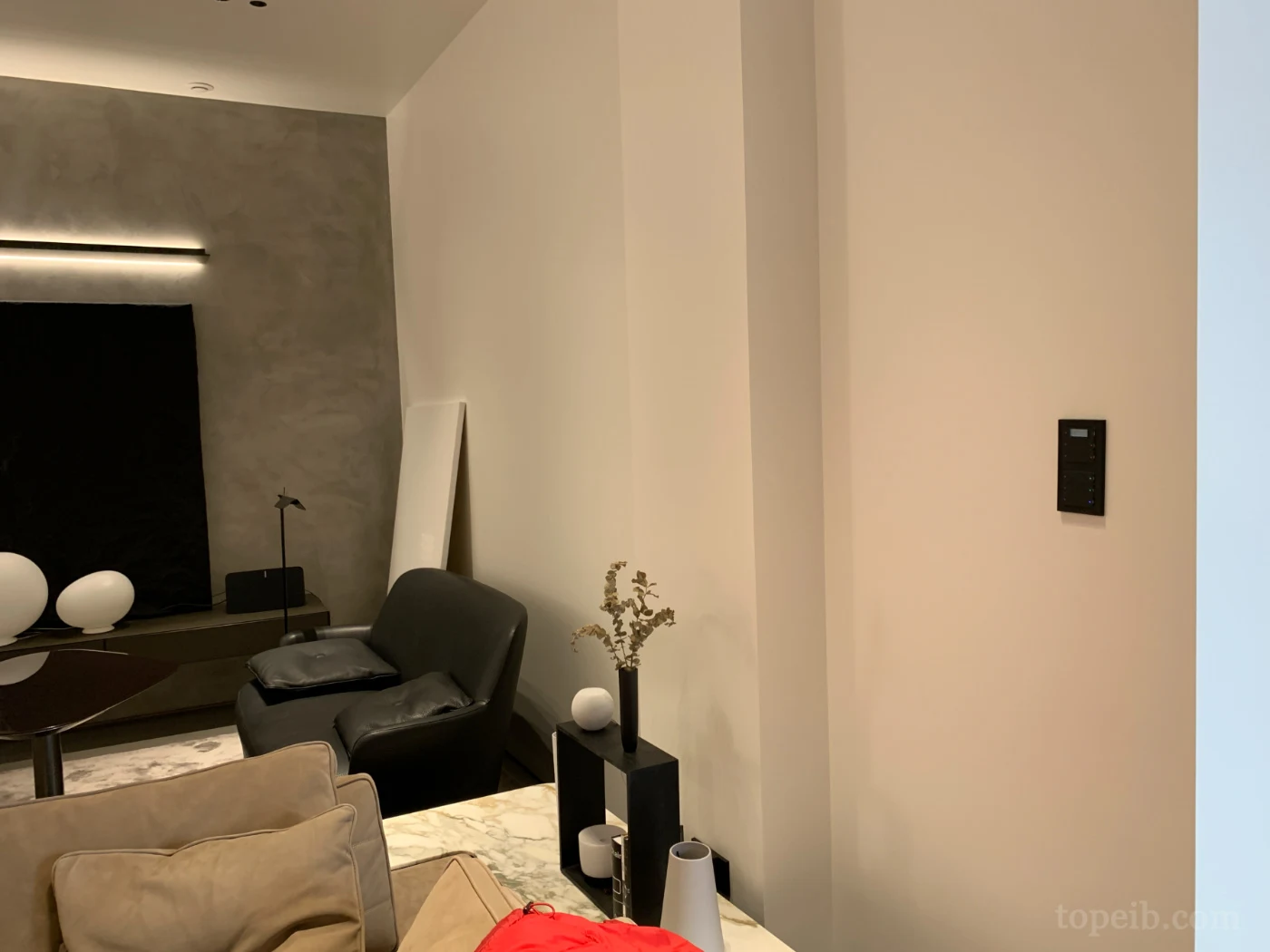

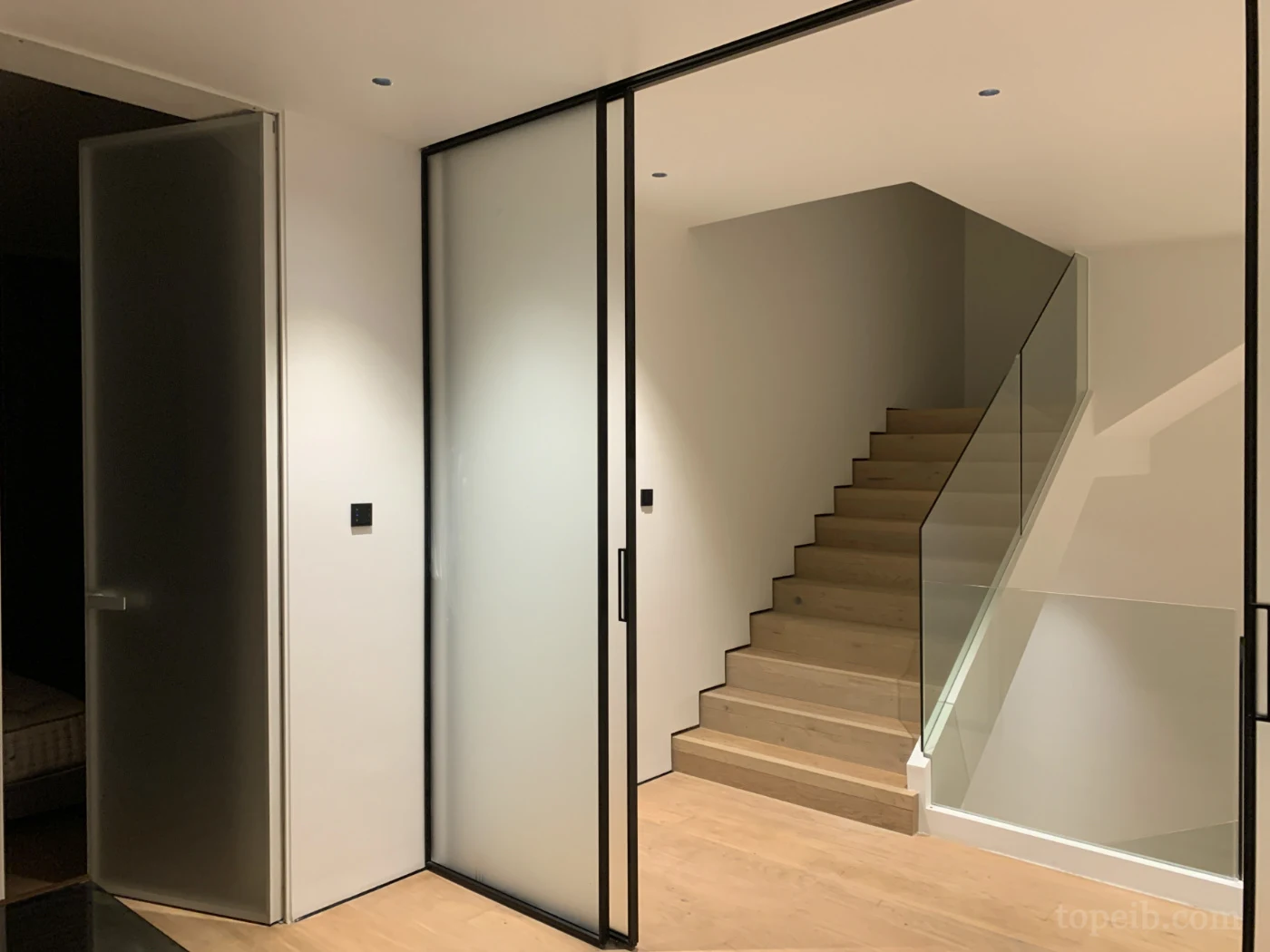

(▲ Clean living room wall featuring a single black GIRA keypad controlling Daily, Host, TV, and All-Off scenes)

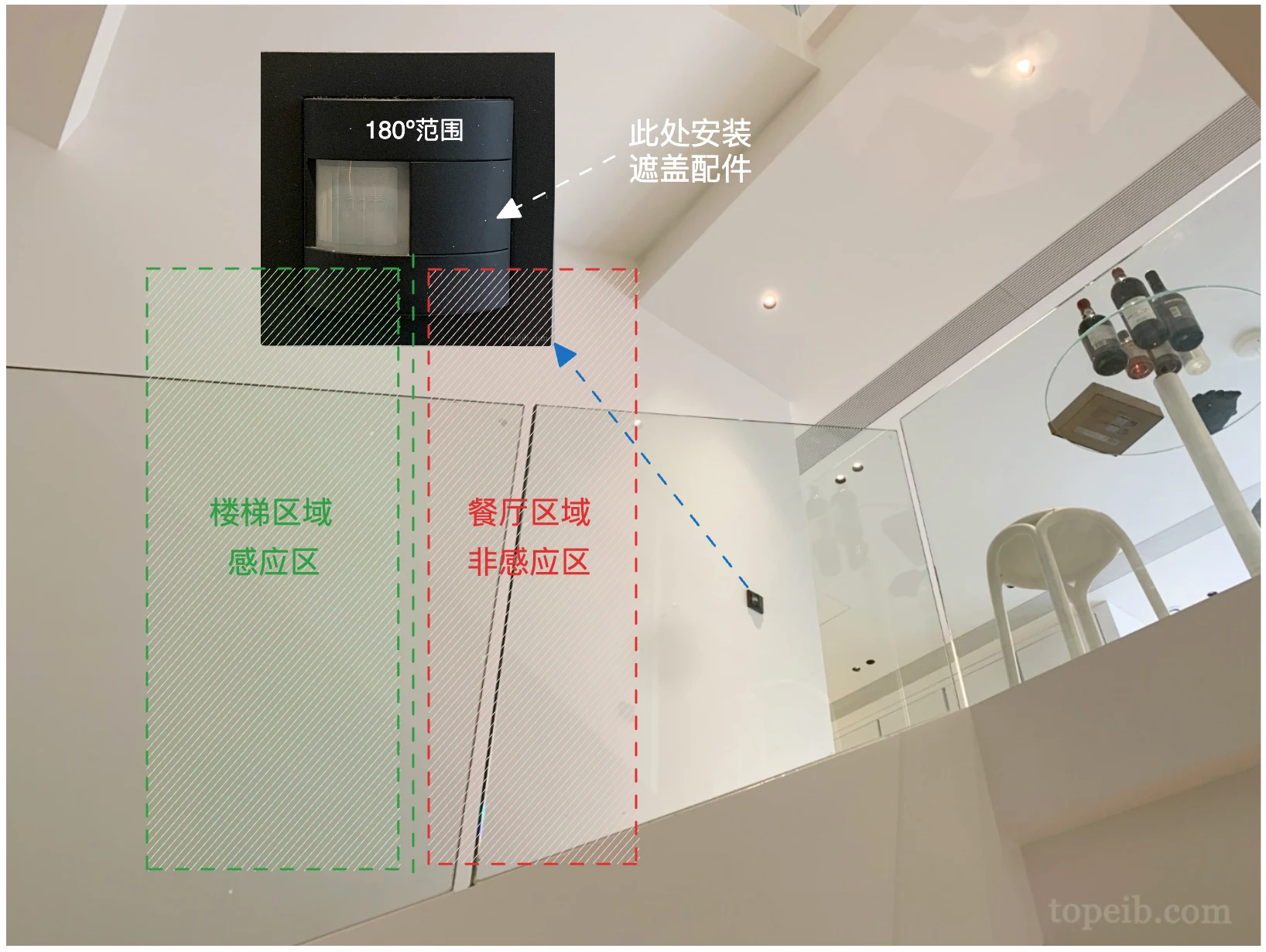

(▲ Directional wall sensor with optical louvers preventing false triggers from the adjacent dining room)

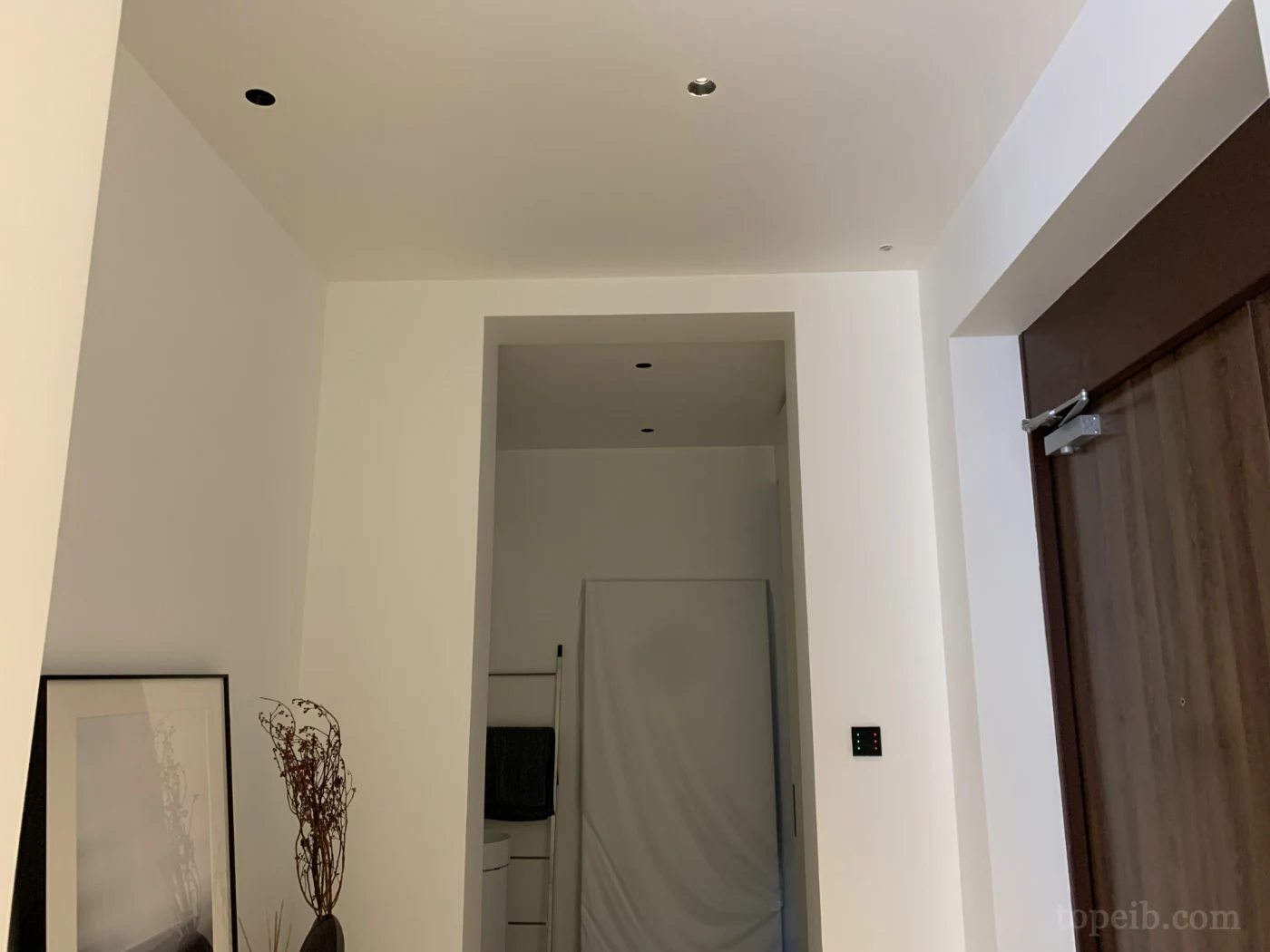

(▲ Bedroom corridor keypad featuring a "Downstairs All-Off" button to shut down all lower-floor lights and AC)

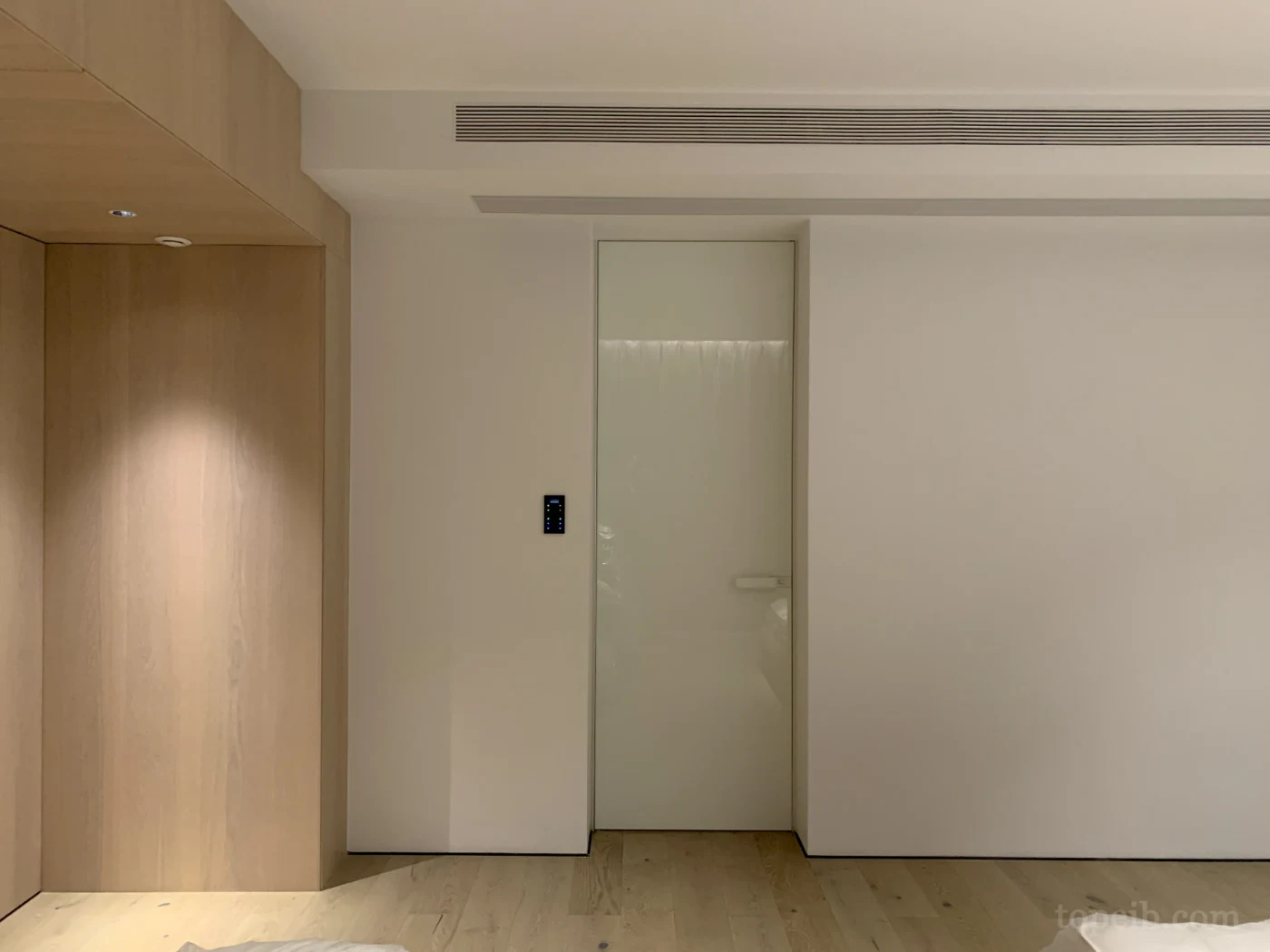

(▲ Master bedroom entry keypad managing all bedroom/bathroom lights, automated climate, and hidden Wi-Fi APs)

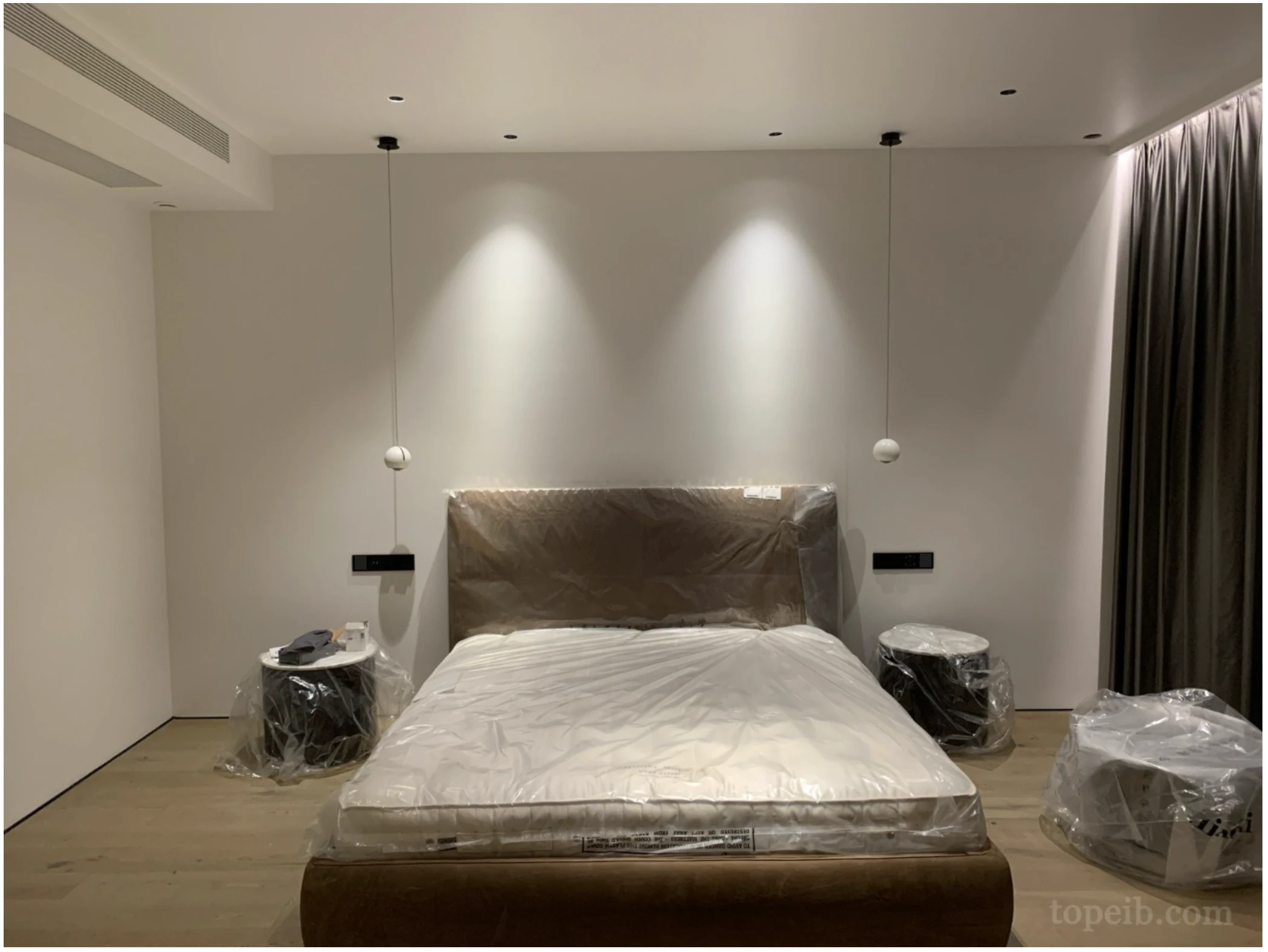

(▲ Bedside multi-gang GIRA unit featuring Night Light mode (gentle 10% floor path to bathroom) and Sleep mode)

---

6. Project Summary

This luxury smart villa utilizes the GIRA-KNX system as its robust underlying control foundation, delivering zero-latency local reliability via hardwired bus modules.

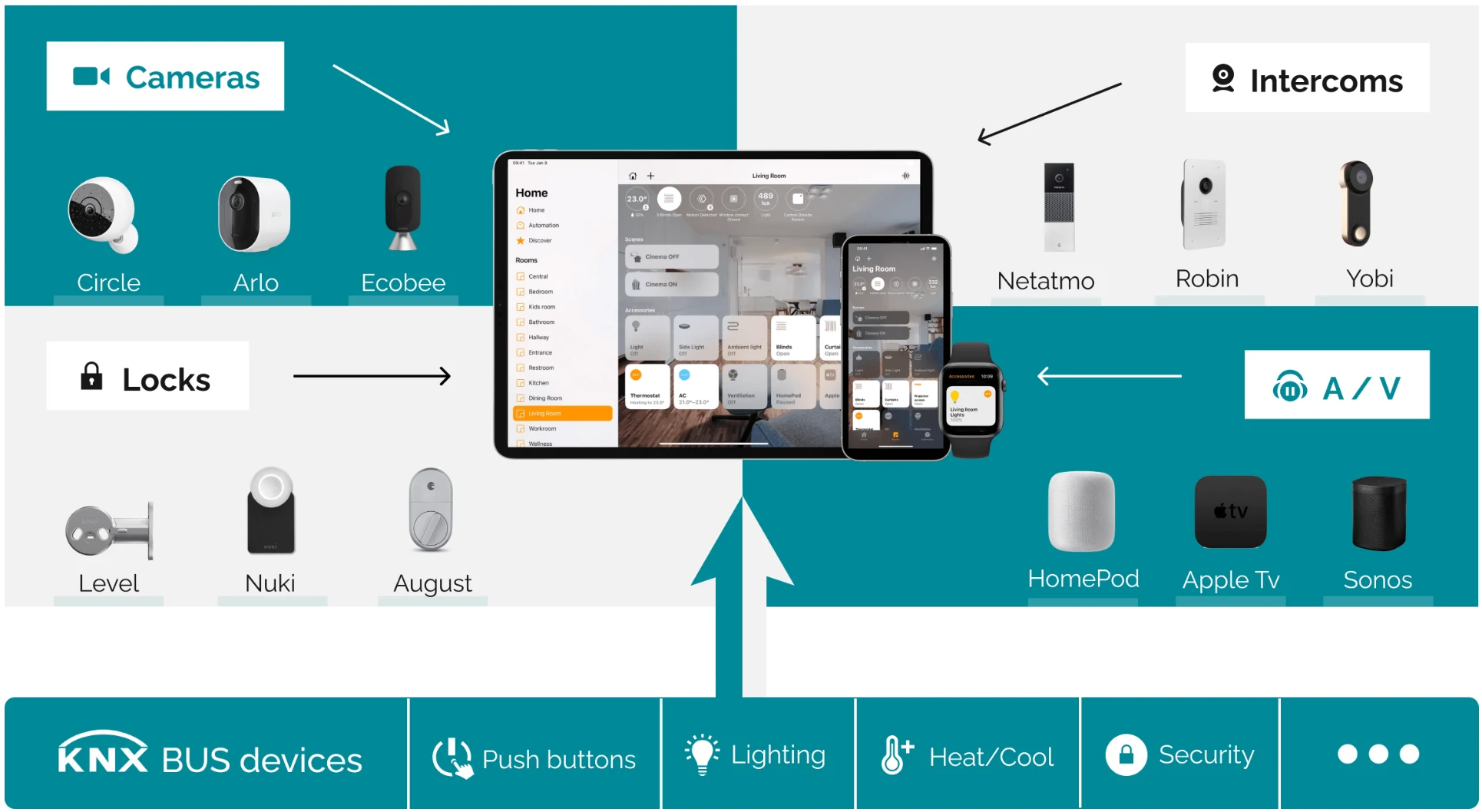

The open KNX standard bridges seamlessly to both GIRA Smart Home and Apple HomeKit, offering flexible control across iPhone, iPad, Apple Watch, and HomePod Siri voice commands. Enthusiasts can easily link the KNX bus to Home Assistant or upgrade to Matter in the future.

Villa smart home integration encompasses electrical power, low-voltage cabling, and complex HVAC engineering. Through rigorous CAD planning and dedicated onsite coordination, TOP Smart delivered a flawless smart living environment for the homeowners.

---

7. Frequently Asked Questions (FAQ)

Q1: When is the ideal time to engage a KNX smart integrator?

The optimal window is 2–4 weeks before electrical rough-in starts, right when interior decoration and design plans are finalized. KNX centralized star-wiring requires specialized conduit routing and custom enclosure sizing before masonry walls are chased.

Q2: Why do German GIRA panels require European 80 circular backboxes?

Standard Chinese switches use 86mm square boxes (60mm screw spacing), whereas German GIRA and JUNG hardware utilize European standard 80 square modular backboxes (linkable design). Installing incorrect 86 boxes makes flush-mounting European multi-gang frames impossible.

Q3: Does Apple HomeKit integration affect local wall switch reliability?

Not at all. Apple HomeKit operates strictly at the application layer. The underlying KNX bus operates 100% autonomously offline. Even if home broadband drops or routers restart, all wall switches, thermostats, and sensors continue functioning flawlessly.

Q4: How does the system prevent simultaneous AC cooling and underfloor heating?

KNX devices feature built-in smart climate interlocking logic. In summer, heating valves are locked out; in winter, radiant floor heating serves as primary heating with FCU boost, automatically shutting off once target comfort is reached.

Q5: Why are wall-mounted sensors preferred over 360° ceiling sensors in corridors?

In open-concept multi-zone areas, 360° ceiling sensors have broad circular coverage that triggers false alarms from adjacent rooms. Directional wall sensors with adjustable optical louvers ensure precise, localized illumination.

---

8. Summary & Professional Integration Services

This luxury townhouse smart villa in Ningbo stands as a testament to the synergy of German GIRA engineering elegance and KNX industrial-grade bus architecture bridged to Apple HomeKit.

As a professional system integrator with 14 years of deep expertise across the Yangtze River Delta, TOP Smart continuously provides homeowners with turnkey butler-grade services—from full smart schematic design, onsite construction management, factory-direct imported hardware procurement, and smart system integration to standardized delivery, commissioning, and lifetime service support.
